| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan / OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 50 Pieces |
|---|---|
| Price: | $0.74 - $2.96 / Piece |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | Not Available |
| Material: | As Request, PP / Cotton / Glass Fiber | Weight: | Depends |
| Size: | Standard, Customization | Product Name: | String Wound Cartridge |
| Micron Rate: | 1, 3, 5, 10 Micron Filters Cartridge | Inner Core: | PP Or Stainless Steel |
| Length: | 5", 10", 20", 30", 40", 50'' Inch | Flow Rate: | 2-8gpm |
| Usage: | Liquid Filter, Water Filter Parts | End Caps: | DOE/222Fin/226Fin/222Flat/226Flat |
| Outer Diameter: | 60~62mm, Jumbo 110~115mm | Core Components: | Liquid Filter Element |
| High Light: | 5 Micron Oil RO Water Filter,50um String Wound PP Filter Cartridges,25um RO PP Filter Cartridges |
||

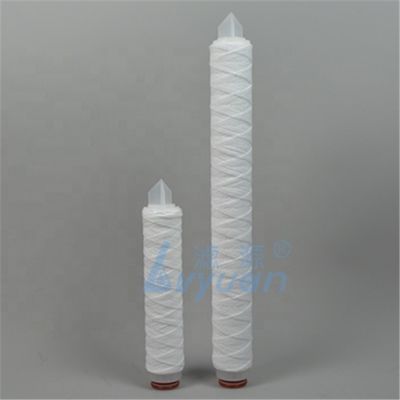

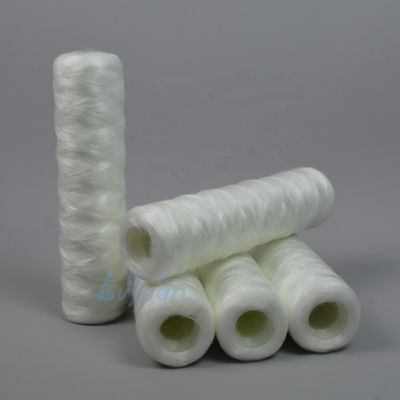

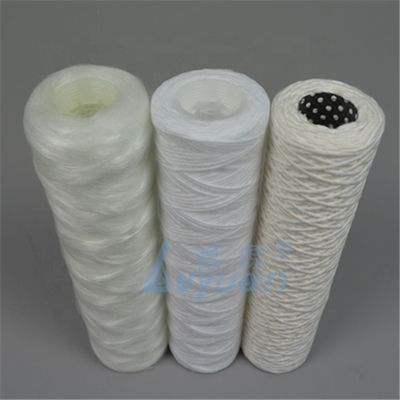

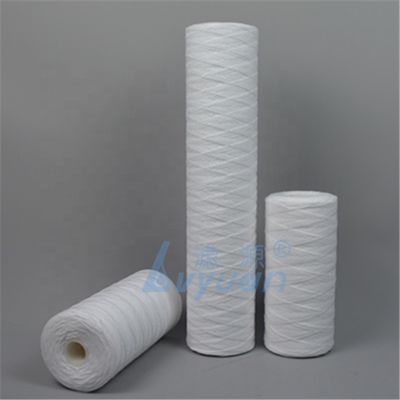

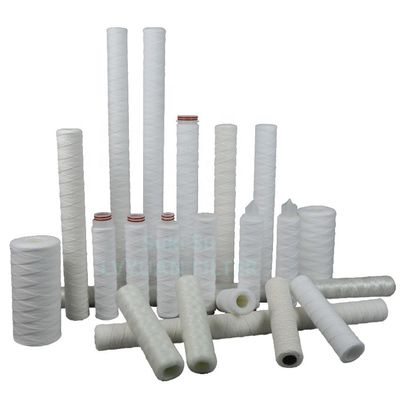

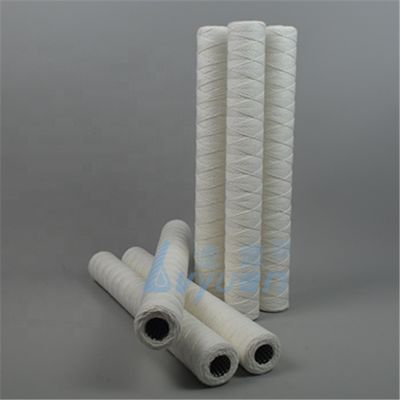

String wound filter cartridges or wound filter cartridge, spiral wound filter elements are made of Polypropylene / PP, absorbent/bleached cotton, or glass fiber wound yarn materials. Inner core materials PP, 304 stainless stee, and 316 stainless steel are available for option. It is decided by the application operation temperature and PH range.
PP string wound cartridge filter, cotton string wound cartridge filter and glass fiber cartridge filter can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions.
Wound yarn filter cartridges can work very effectively a variety of industrial processing, such as in Pre-RO water treatment, Food & Beverage, Chemical filter solution, waste water treatment, petrochemical process, Electronic & semiconductor etc.
|
Product
|
String wound filter cartridge
|
|
Material
|
Polypropylene, absorbent cotton, glass fiber
|
|
Precision filtration
|
1, 3, 5, 10, 20, 25, 30, 50, 75~100 micron
|
|
Outer diameter
|
60~62mm, Jumbo 110~115mm, or customized as request.
|
|
Inner diameter
|
28mm or 30mm
|
|
End cap Code
|
DOE=code 0, 222+Fin=code 7, 222+Flat=code 3, 226+Fin=code 8, 226+Flat=code 6, code 9=customized
|
|
Seal Material
|
EPDM, Silicone, Viton, NBR, Teflon
|
|
Length
|
5'', 10'', 20'', 30'', 40'', 50'', 60'', 70'' or as request
|
|
Core material
|
Polypropylene or stainless steel
|
|
Max differential pressure
|
4.5bar at 25°C
|
|
Replacment differential pressure
|
1-1.5 bar
|
|
Max operating temperature
|
PP with PP core:80 °C
PP with stainless steel core: 100°C Absorbent cotton with SS core:180°C Glass fibre with SS core: 300°C |
1. Pre-RO water treatment, like drinking water, power, plating and oil industry.
2. Food and Beverage industry
3. Chemical, solvent, Pharmaceuticals and ink filter solution
4. Waste water treatment
5. Petrochemical process
6.Electronic & semiconductor etc.
