| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan / OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $2.50 - $12.00 / Piece |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Material: | Pleated Filter Element | Weight: | Depends |
|---|---|---|---|
| Size: | Standard, Customization | Warranty: | Unavailable |
| Product Name: | PP Pleated Filter | Micron Rate: | 0.1, 0.5, 1, 5, 10 ~60um |
| Pleated Cartridge Material: | PP/PTFE/PES /Nylon 6 /PVDF | Length: | 5", 10", 20", 30", 40" , OEM |
| Filter Media: | Polypropylene Membrane | End Cap: | DOE,222+Fin,222+Flat,226+Fin,226+Flat |
| Gasket/O Ring Material: | Silicon/EPDM/NBR/Viton/Te-lfon | Usage: | Liquid Filter Elements, Water Filter Parts |
| Inner Core: | PP / Stainless Steel | Core Components: | Filter Accessories |
| Selling Units: | Single Item | Single Package Size : | 15X15X103 Cm |
| Single Gross Weight: | 2.000 Kg | ||
| High Light: | 10um PP Fiber Pleated Cartridge Filter,0.45um PP Pleated Filter,PTFE PP Membrane Cartridge Filter |
||

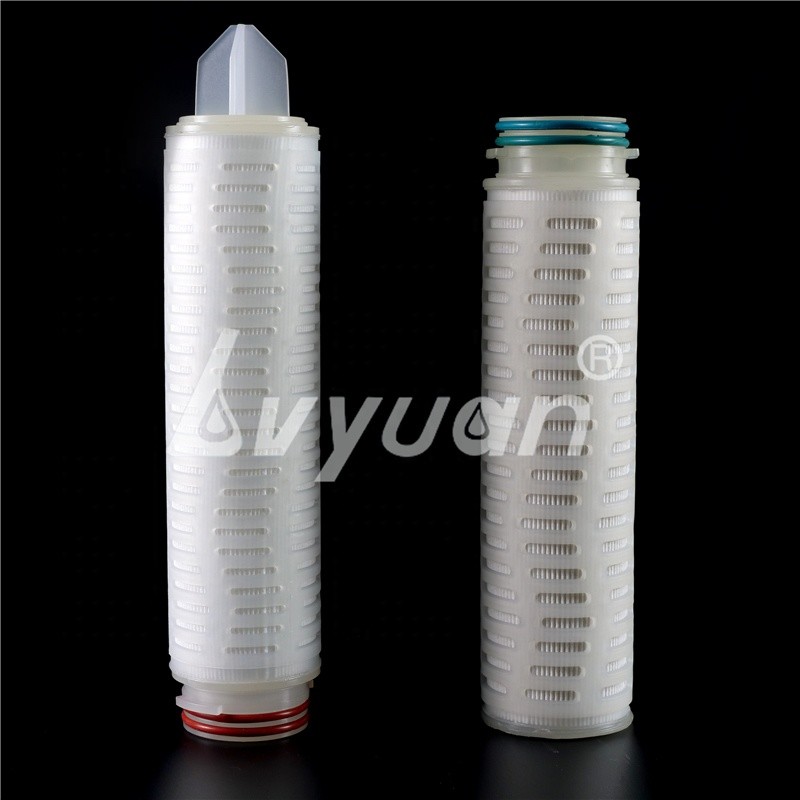

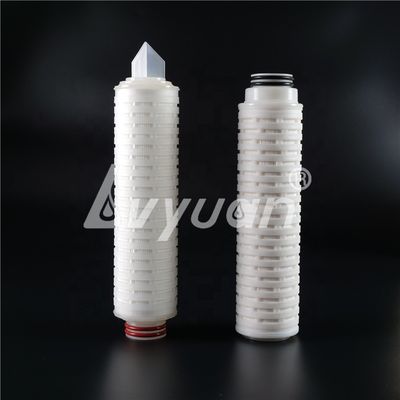

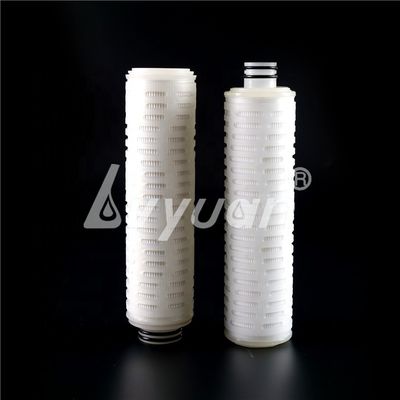

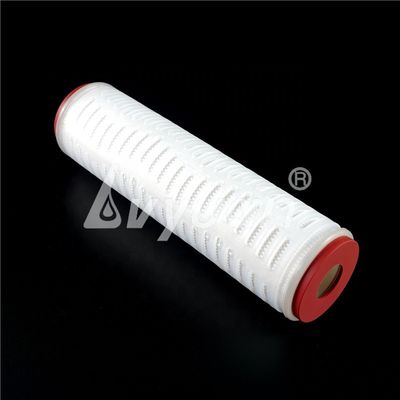

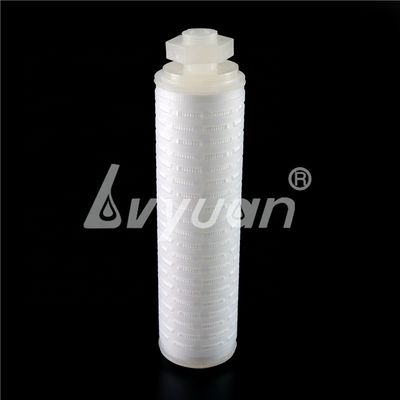

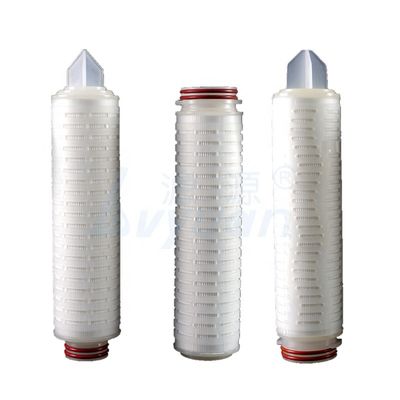

Beverage Filtration 0.2 0.22 0.45 1 5 10 Um Nylon PTFE PP Fiber Pleated Cartridge Filter
Micron PP Pleated Membrane filter cartridge is designed to meet the high mechanical resistance and compatibility requirements of typical food and beverage production cyclies of filtration, sanitization, regeneration and steam sterilization.
It is frequently used in a wide varity of applications requiring excellent particle removal. Satisfying filtrate quality specifications or effectively prolonging the life of downstream final filters.
Strict production environment and test assure the security of filtration.
The PP Pleated Filter Cartridge is constructed of superfine polypropylene fiber membrane, non-woven support materials folded. The cage, core and end caps are thermally welded without the use of glues or adhesives that prevent leakage and secondary pollution.
-- High dust holding capacity
-- High flow rates and long service life
-- Reliable retention of particulates
-- Wide chemical compatibility
-- Ideal for viscous and colloidal liquid filtration
