| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan / OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | $50.00 - $500.00 / Piece |
| Packaging Details: | paper box and wooden case |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Year |
| Product Name: | Triple Bag Filter | Housing Material: | Ss304, Sus 316, Ss316L,PP |
|---|---|---|---|
| Bag Filters Quantity: | Single Or Multi Bags Customized | Bag Size: | 180*450mm Or 180*810mm, Other |
| Inlet & Outlet Type: | Flange/thread Connection | Filter Bag Material: | PP, PE, Customized |
| Max. Working Pressure: | 100/150/300 Psi | Usage: | Liquid Filtration |
| Bag Number: | #1, 2, 3, 4, 5, OEM | Housing Clousure By: | Quick Bolt, Clamp, Flange |
| High Light: | 180*450mm Triple Bag Filter Housings,SUS304 Triple Bag Filter Housings,SUS304 stainless steel bag filter housing |
||

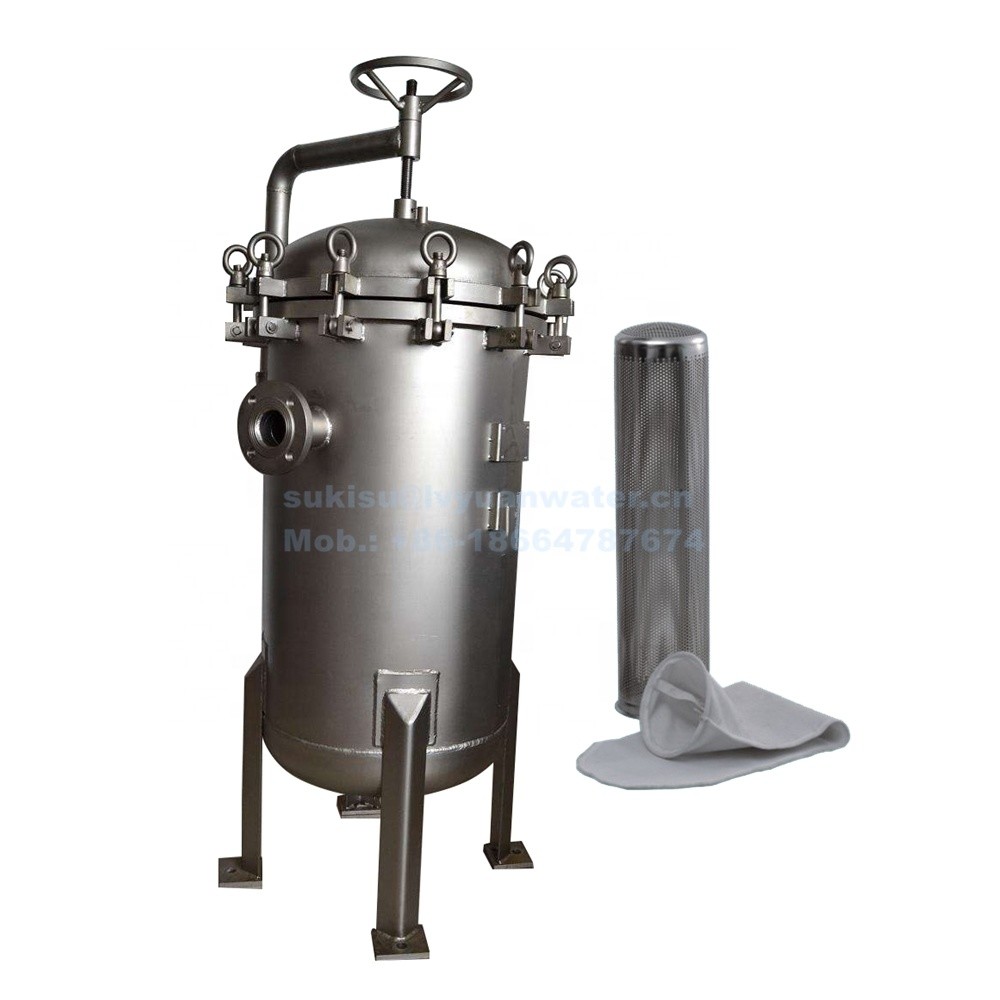

Large Flow #1/2 Stainless Steel 304 Triple industrial cartridge filter housings
Industrial bag filter housings has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation. In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost. The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is average and easy to clean. We know that the filter method adopted by the bag filter is a side-in-side-out method, or a side-in-bottom-out method. The filtered liquid medium is pressed into or drawn into the bag filter barrel through the pressure in the pipeline. , The liquid medium to be filtered is filtered by the filter bag supported by the filter basket through the electro-polishing punching hole, and the changed solid and liquid reach the result of the liquid medium being filtered.
| NO. | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) | E(mm) | H(mm) | In/Out | Flowrate m3/h | NO.Bags |
|---|---|---|---|---|---|---|---|---|---|---|
| 450-2F | 108 | 1100 | 1430 | 450 | 590 | 450 | 590 | 3'' | 60 | 2 |
| 500-3F | 150 | 1190 | 1540 | 500 | 650 | 500 | 640 | 4'' | 90 | 3 |
| 550-4F | 150 | 1200 | 1560 | 550 | 690 | 550 | 690 | 4'' | 120 | 4 |
| 600-4F | 150 | 1250 | 1630 | 600 | 740 | 600 | 760 | 5'' | 120 | 4 |
| 600-5F | 150 | 1250 | 1630 | 600 | 740 | 600 | 760 | 5'' | 150 | 5 |
| 650-5F | 180 | 1350 | 1740 | 650 | 790 | 650 | 830 | 6'' | 150 | 5 |
| 700-6F | 200 | 1380 | 1780 | 700 | 840 | 700 | 860 | 6'' | 180 | 6 |
| 750-8F | 200 | 1460 | 1920 | 750 | 910 | 750 | 930 | 8'' | 240 | 8 |
| 800-10F | 200 | 1470 | 1950 | 800 | 960 | 800 | 980 | 8'' | 270 | 9 |
| 900-10F | 250 | 1550 | 2050 | 900 | 1060 | 900 | 1100 | 8'' | 300 | 10 |
| 1100-12F | 250 | 1570 | 2100 | 1000 | 1160 | 1000 | 1200 | 8'' | 360 | 12 |
| 1100-16F | 250 | 1600 | 2150 | 1100 | 1260 | 1100 | 1400 | 8'' | 480 | 16 |
| 1200-18F | 300 | 1780 | 2350 | 1200 | 1360 | 1200 | 1500 | 10'' | 540 | 18 |
Product Feature:
The bag filter housing has large processing capacity, small volume and large dirt holding capacity.
Based on the working principle and structure of the bag filter system, it is convenient and quick to replace the filter bag, and the filter is free of cleaning, saving labor and time.
The filter bag can be used repeatedly after cleaning, saving cost.
The bag filter has a wide range of applications, flexible use and various installation methods.
