| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan,OEM,ODM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | $225.00 - $465.00 / Piece |
| Packaging Details: | paper box and wooden case |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Year |
| Material: | Stainless Steel, SS304/SS316 | After-sales Service Provided: | Online Support |
|---|---|---|---|
| Feature: | Easily Installment | Bag Size: | 180*450mm |
| Usage: | Water Filtration | Application: | Industry |
| Surface: | Polished | Raw Material: | Stainless Steel |
| Working Pressure: | 100Psi | ||
| High Light: | 100Psi SS Bag Filter Housings,0.5um SS Bag Filter Housings,0.5um bag filter vessel |
||

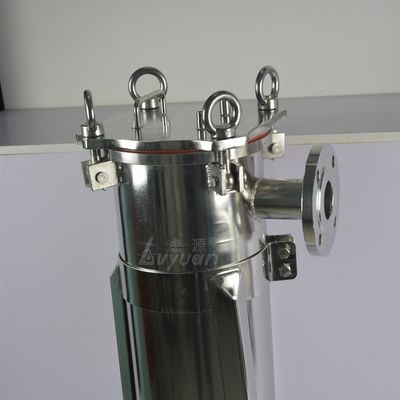

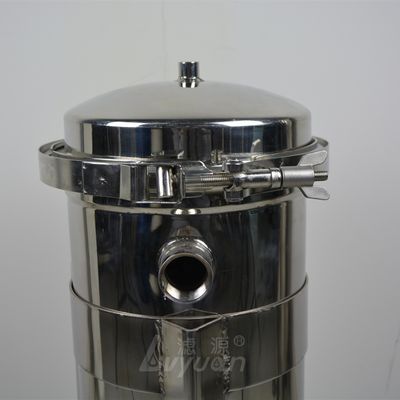

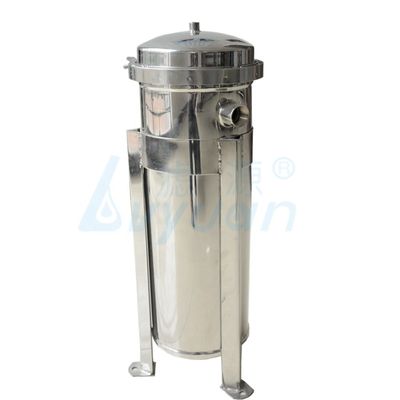

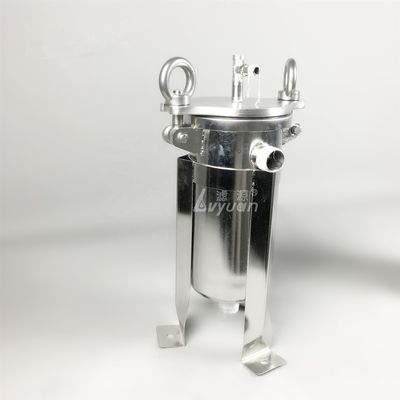

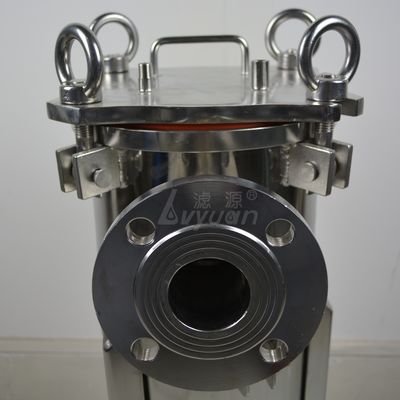

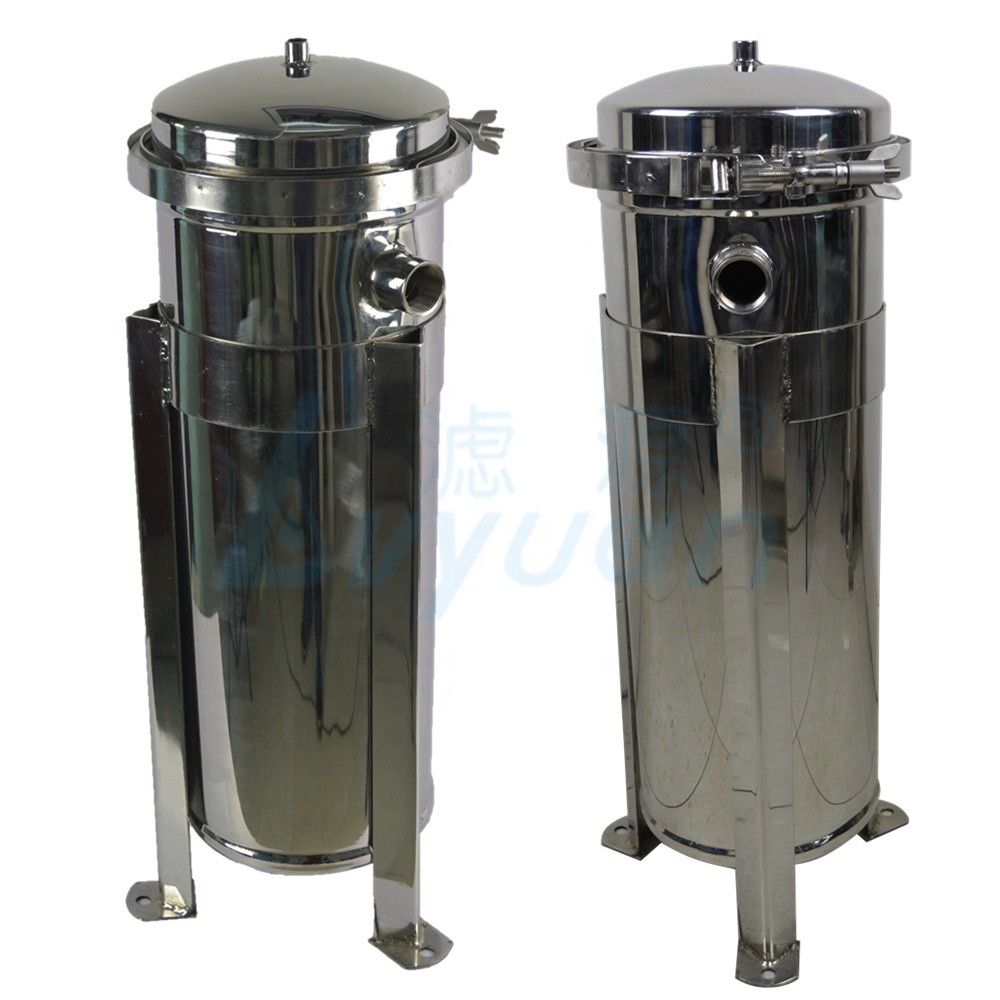

Trip Clamp ss304 ss316 food grade ss bag filter housing for liquid filtration
The ss bag filter housing is a pressure filter device, mainly composed of filter cylinder body, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforcement net and other main components. The filtrate is from the side entrance of the filter housing The tube flows into the filter bag, and the filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
There are several types of bag filters housing: single-bag filters housing, multi-bag filters housing, rocker-arm bag filters housing, high-precision bag filters housing, etc. The filter accuracy ranges from 1-100 microns.
| NO. | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) | In/Out |
|---|---|---|---|---|---|---|
| B1 | 500 | 380 | 700 | 200 | 170 | 1'' -4'' |
| B2 | 700 | 720 | 1050 | 200 | 170 | 1'' -4'' |
| B3 | 350 | 190 | 400 | 114 | 97 | 3/4'' -2'' |
| B4 | 500 | 340 | 540 | 114 | 97 | 3/4'' -2'' |
Product feature:
The side leakage rate of the filter bag is small, which effectively guarantees the filtering quality.
The bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy saving effect.
The filter accuracy of the filter bag has been continuously improved and has reached 0.5μm.
