| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan / OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $17.17 - $113.44 / Piece |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Material: | Pleated Filter Element | Weight: | Depends |
|---|---|---|---|
| Size: | Standard, Customization | Warranty: | Unavailable |

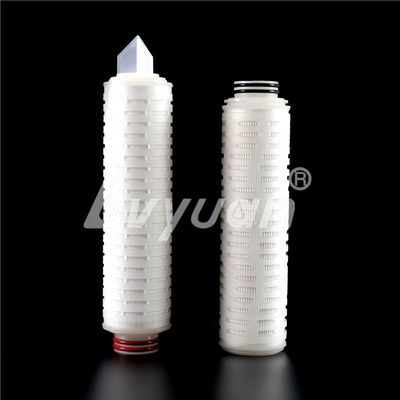

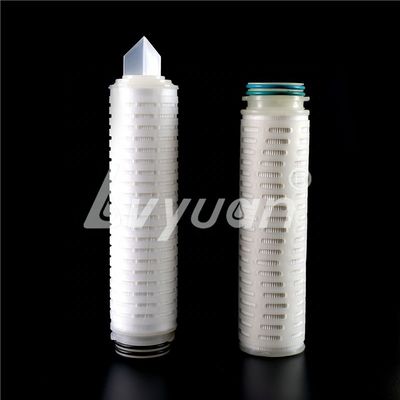

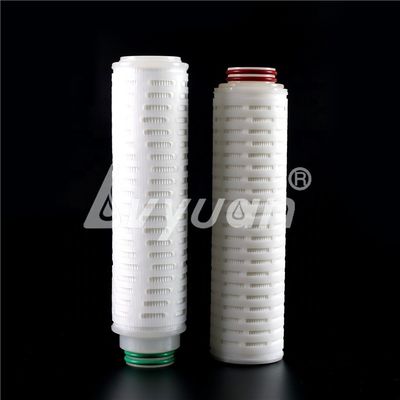

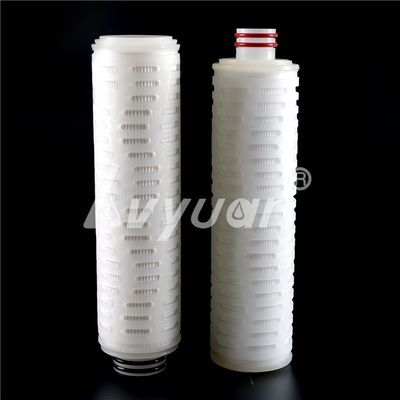

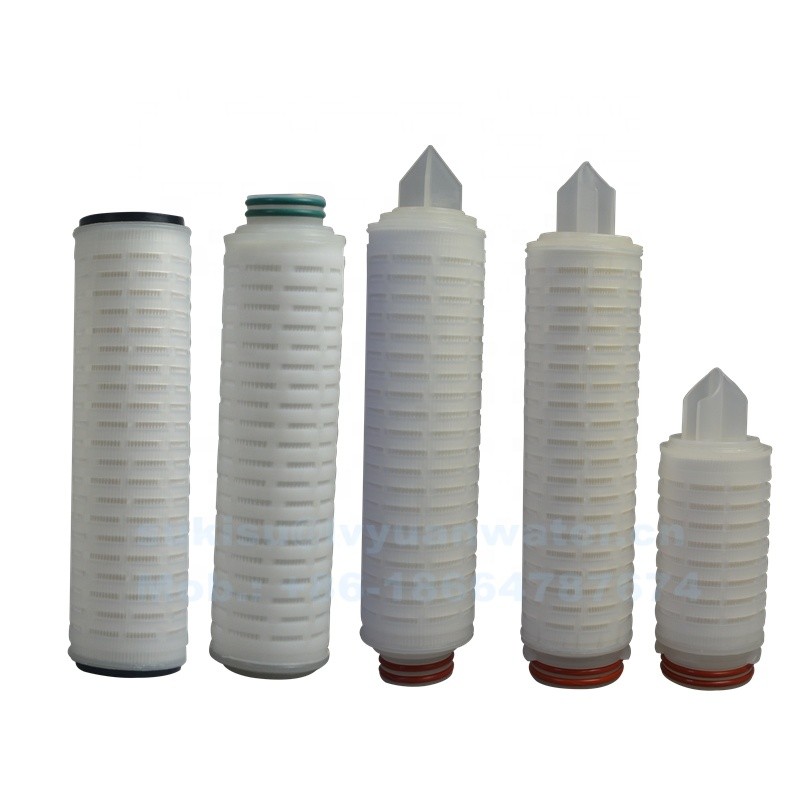

| Product Name: | Ptfe Air Vent Filter | Micron Rate: | 0.1, 0.5, 1, 5, 10 ~60um |
| Pleated Cartridge Material: | PP/PTFE/PES /Nylon 6 /PVDF | Length: | 5", 10", 20", 30", 40" , OEM |
| Filter Media: | Polypropylene Membrane | End Cap: | DOE,222+Fin,222+Flat,226+Fin,226+Flat |
| Gasket/O Ring Material: | Silicon/EPDM/NBR/Viton/Te-lfon | Usage: | Liquid Filter Elements, Water Filter Parts |
| Inner Core: | PP / Stainless Steel | Selling Units: | Single Item |
| Single Package Size : | 15X15X103 Cm | Single Gross Weight: | 2.000 Kg |
| High Light: | 0.22um Micron PTFE Vent Filter,226 Flat Membrane Cartridge Filter,0.22um PTFE Membrane Cartridge Filter |
||
| Outside Diameter: | 2.7''(69mm) |
| Length: | 9.75'',10'',20'',30'',40'' |
| Filter media: | PP |
| Support Layer/Cage/Core/ End caps : | Polypropylene (PP) |
| Seal Material : | Silicone,EPDM,NBR,Vilton,Teflon,E-FKM |
| Removal Rating: | 0.1um, 0.22um, 0.45um, 1um, 3um, 10um, 20um, 50um |
| Maximum Operating Temperature | 80°C at 1bar, support adaptors are recommended for temperature exceeds 50℃ |
| Maximum Differential Pressure : | 4.0Bar, normal temperature |
| Maximum Differential Pressure(Reverse Direction): | 2.0Bar normal temperature |
| Maximum temperature sterilization : | 5times, 20 minutes cycles at 120℃ |
Application
--Prefiltration for draft beer
--Clarification for wine, liquor and other alcohol drinks
--Filtration for mineral water and purified water
--Security filtration for reverse osmosis
--Clarification during primary food process
Our service
1. Professional support, help to choose the correct bag for your specific application.
2.Custom designed filter bags to meet your specific application.
3.Provide maximum performance and long filter life.
4. Varies choice of bag styles and Medias.
5. Large inventory for fast worldwide delivery.
