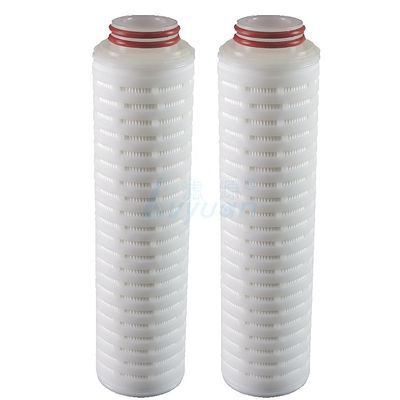

0.7m2 10 Micron OD 100mm Pleated Filter Cartridge For Pre Filtration

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Lvyuan, OEM, ODM
Certification:	SGS/CE/ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Price:	$3.03 - $12.12 / Piece
Packaging Details:	paper box
Payment Terms:	T/T L/C West Union
Supply Ability:	500 Piece/Pieces per Day

Contact Now

Detailed Product Description

Material:	Pp/PES/PVDF/PTFE/Nylon	Weight:	Customized
Size:	Customized, Slim,jumbo	Feature:	Increased The Filtration Area
Shape:	Cylinder	Usage:	Water Treatment
Application:	Industry	Color:	White
Packing:	Paper Box	Other Name:	Folding Filter Cartridge
Mircron Rate:	0.1micron To 100 Micron
High Light:	0.7m2 Pleated Filter Cartridge , 100mm Pleated Filter Cartridge , 10 micron water filter cartridge

10 micron 100 mm diameter pleated filter cartridge 10 20 30 40 inch for pre filtration

Lvyuan pp pleated filter cartridge specification:

Filter media /support/core /end cap material	PP(polypropylene)
Seal material	Silicone, EPDM, NBR, VITON, TEFLON, etc
Code	DOE, 215 flat, 22flat, 222fin, 226flat, 226fin,or customized
Pore size	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 um
Outer diameter	69mm, or customized
Length	9.15'', 10'', 20'', 30'', 40'', or customized
Effective filtration area	0.4-0.7㎡
Max. operating temperature	88℃, 0.28Mpa /60℃, 0.42Mpa

General Description

pp pleated filter cartridge deliver high effciency and consistent filtration of fluids in the food and beverage industry. They are constructed of pleated membrane filter media that provides removal of partical from 0.1 to 60 micron, the pore size is not affected by the vibration of feeding pressure, due to its uique low differential pressure, high flow volume, excellent filtration microns.

Features:

1. Excellent chemical compatibility, suitable for filtering organic solvent, acid bases.

2. Large flow volume, low diffential pressure and long service life.

3. Pleated design increased the filtration area for deep filtration .

4. Pleated media with high dirt holding capacity

5. Full range of removal microns ratings.

6. Multiple adaptor options, Easy installation into sanitary housings.

Accept customized code and length, as you can provide the specification, we will arrange to produce.

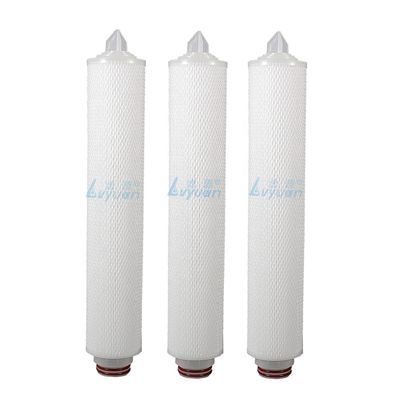

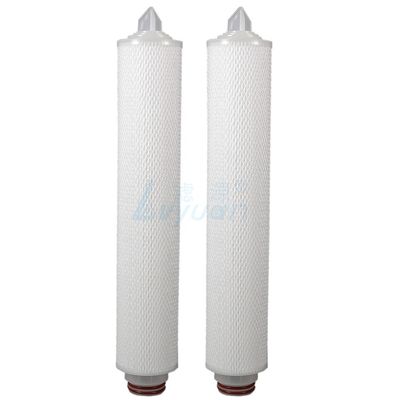

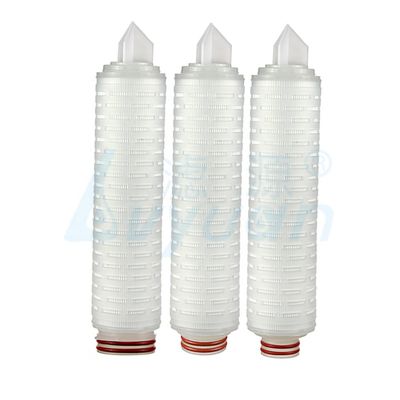

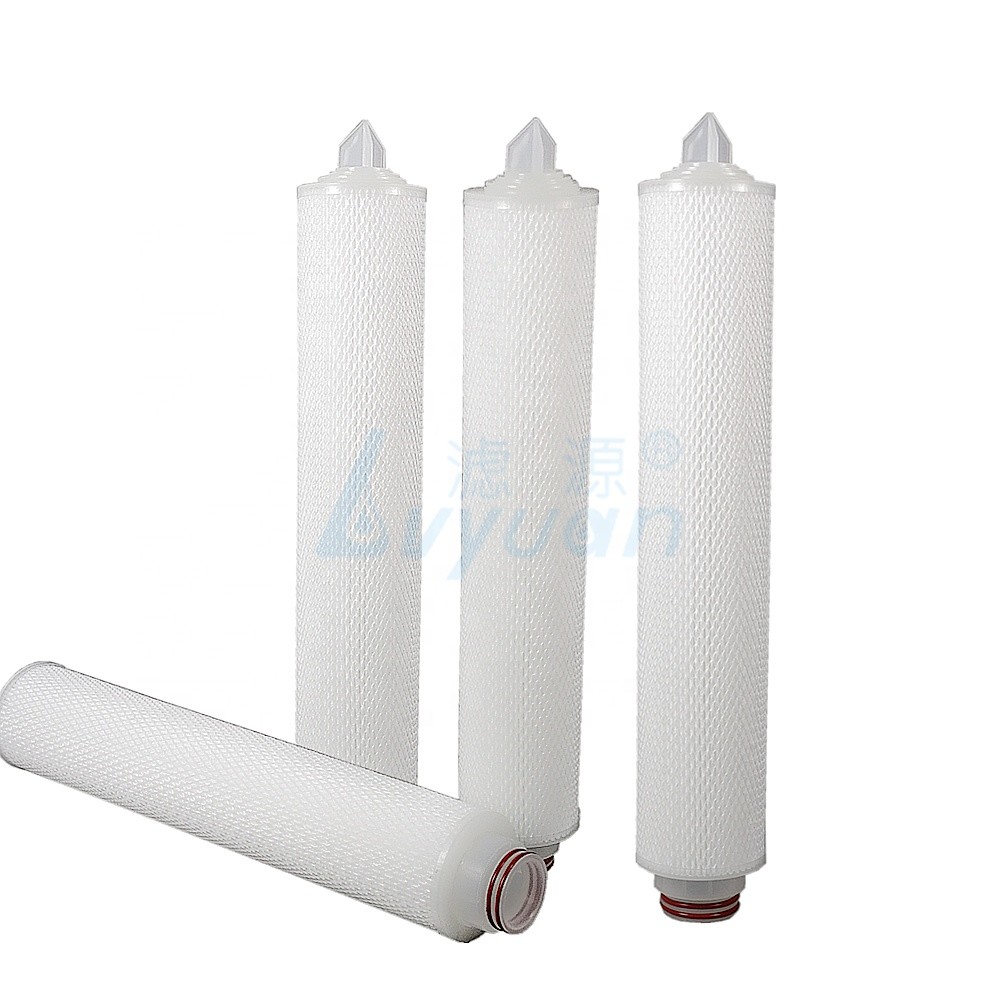

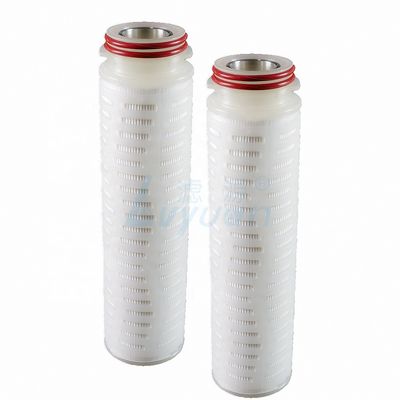

More pic show :

Application

1. Filtration for electronic, mico-electronic and semiconductor water.

2. High pure chemical filtration

3. Medical liquid filtration

4. Food & beverage filtration
