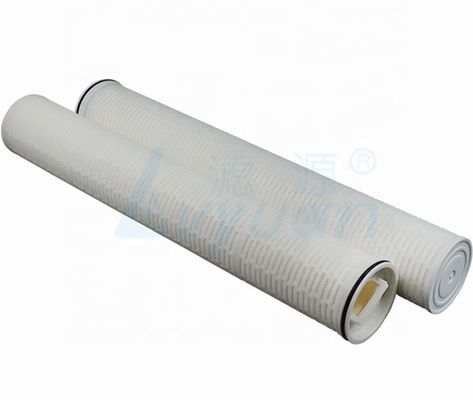

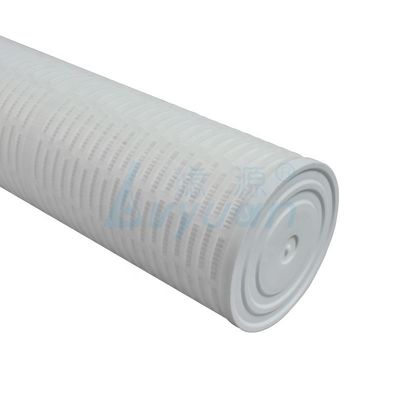

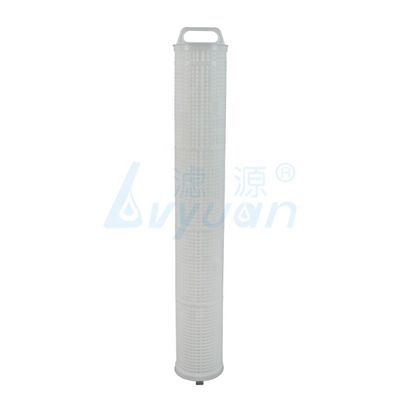

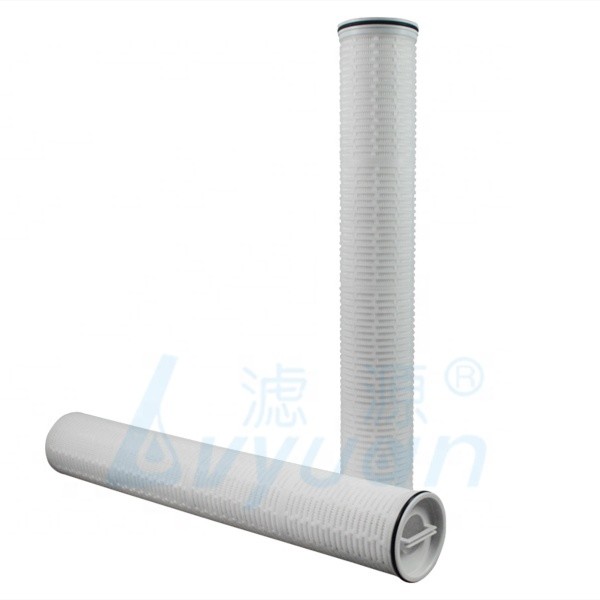

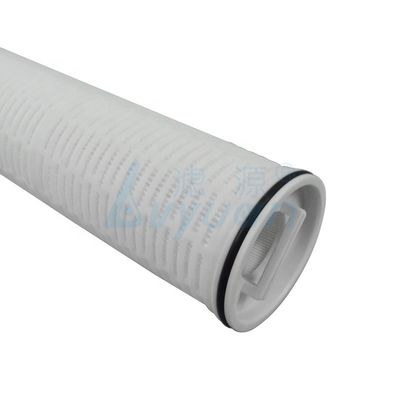

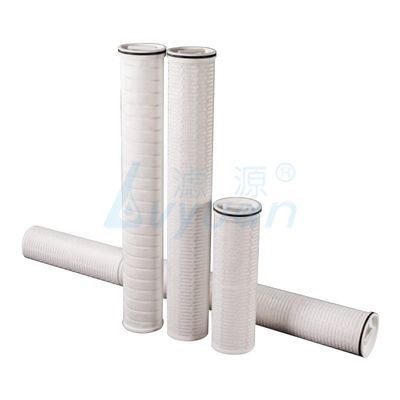

152mm PP Melt Blown Filter

152mm PP Melt Blown Filter

  • 152mm PP Melt Blown Filter
  • 152mm PP Melt Blown Filter
  • 152mm PP Melt Blown Filter
  • 152mm PP Melt Blown Filter
  • 152mm PP Melt Blown Filter
  • 152mm PP Melt Blown Filter
152mm PP Melt Blown Filter
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan, OEM, ODM
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: $51.40 - $206.00 / Piece
Packaging Details: paper box
Payment Terms: T/T L/C West Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Material: Pp Melt Blown, Pleated Pp Feature: Increased The Filtration Area
Length: 20 Inch / 40 Inch /60 Inch Shape: Cylinder
Usage: Water Treatment Application: Industry
Color: White Packing: Paper Box
Other Name: Folding Filter Cartridge Filter Media: PP/pp Melt Blown/ Fiber Glass
High Light:

152mm PP Melt Blown Filter


SGS PP Melt Blown Filter


1900LPM Pleated Filter Cartridge

High Flow Filter Cartridge 20 40 60 inch 5 micron water filter for Industrial Water Filter

General Description


The LY-HFPL filter cartridge is a new product developed by lvyuan water purification Equipment Co.,Ltd. In Guangzhou China. It has a 6inch/152mm large diameter, and it is coreless, single open-ended with an inside to outside flow pattern. the large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpowder in many applications. this kind of LY-FPL product has various application on water treatment.


LY-FPL high flow filter cartridge specification:

Filter media material
pleated glass fiber, pleated depth pp, pp melt blown.
End caps
glass fiber reinforced pp
Seal material
Pore size
1/4/5/10/15/20/40/70/100 micron
outer diameter
152 mm(6")
suggested max.flow of water
20 inch: 660LPM, 40 inch: 1300LPM, 60 inch : 1900LPM
max. operating temperature
pleated fiber glass:121℃, pleated pp : 82℃, pleated pp meltblown:65℃
max.differential pressure
pleated fiber glass:3.4 bar at 121℃, pleated pp : 3.4 bar at 82℃, pleated pp melt blown:1.03 bar at 65℃


152mm PP Melt Blown Filter 0
1. Handle design quick installation,safe and reduce the cost.
2. Up to 110 m³/h flow rate per one filter cartridge for water filtration
3. Max.50% reduction of filter system.
4. All contaminants can be removed within the cartridges because of the flow direction.
152mm PP Melt Blown Filter 1



152mm PP Melt Blown Filter 2
152mm PP Melt Blown Filter 3

1. Municipal tap water, prefiltration of Ro, Pre treatment of sea water desalination

2. Condensate water filtration, hot water recovery in power generation

3. API, solvents, and water filtration in Biopharm market.

4. The filtration of bottled water, high fructose, edible oil, soft drinks and milk.

5. Paints and coatings, petrochemical, refineries.

6. Microelectronics, film, fiber and resin.

7. Deionized water pre-filtration


152mm PP Melt Blown Filter 4
152mm PP Melt Blown Filter 5
