Place of Origin: | Guangdong, China |
Brand Name: | LVYUAN/OEM |
Certification: | SGS/CE/ISO 9001 |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | $3.00 / Piece |
Packaging Details: | 1. Outside packing: Thick Carton 2. Inside packing: Poly Bag |
Payment Terms: | T/T L/C West Union |
Supply Ability: | 500 Piece/Pieces per Day |
Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
---|---|---|---|
Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel |
Material: | Sintered, PE/PTFE/PA | Warranty: | Unavailable |
Product Name: | Sintered PE Powder Filter Cartridge | Microns Rate: | 1,5,10,20,25,30,35,40,50,60,80,100, Customized |
End Cap: | SOE/DOE | Working Temperature: | 80 -120 ℃ |
Filter Coonector: | FLAT,INSERT-TYPE,THREAD TYPE,226,222,215 | Length: | 10mm,20mm,30mm,50mm,110mm,120mm, 200mm, Customized |
Selling Units: | Single Item | Single Package Size : | 30X5X5 Cm |
High Light: | 99.99% PA Polyethylene Filters,60% porosity Polyethylene Filters,PTFE PA Polyethylene Filters |

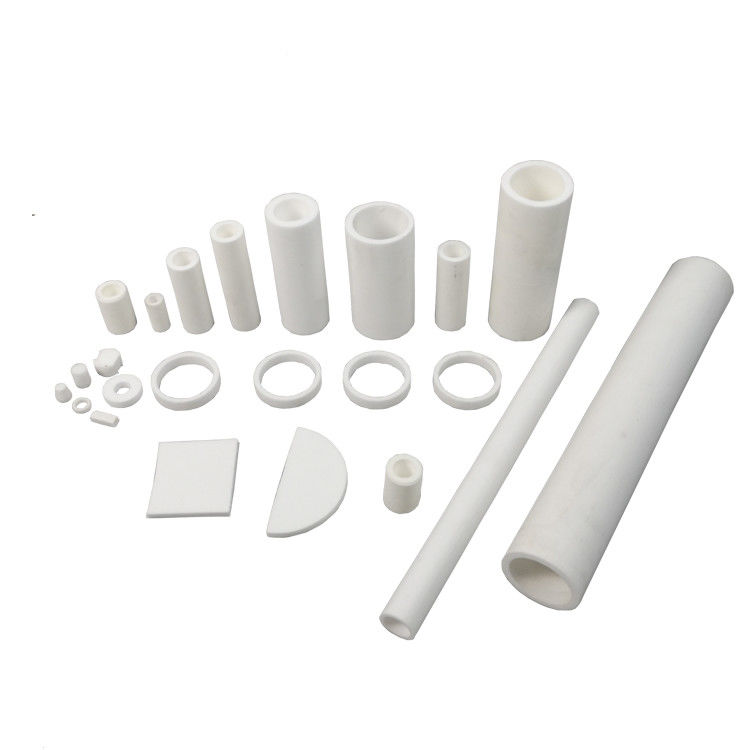

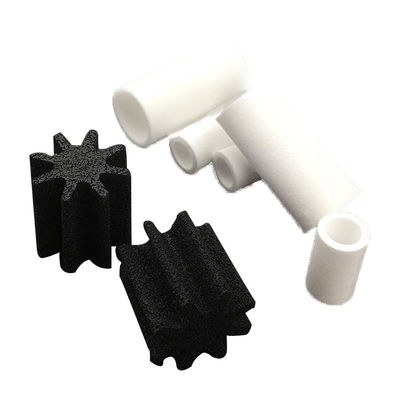

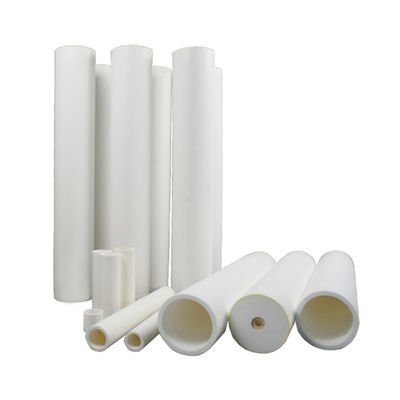

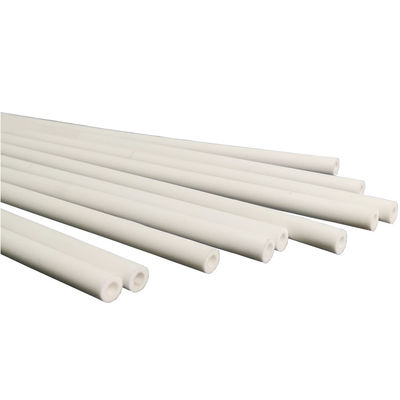

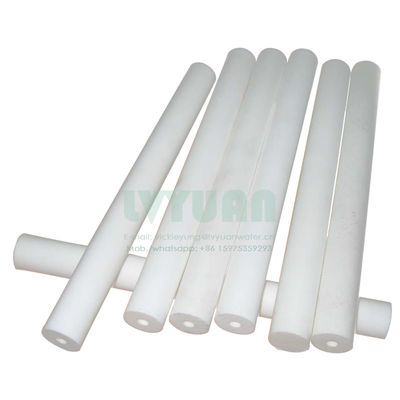

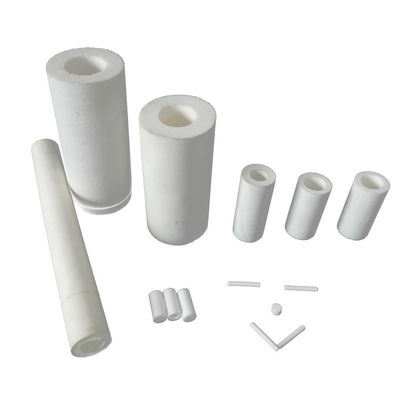

PE sintered filter element It adopts ultra-high polymer material and is sintered into a filter element through scientific formula. When the working temperature is 80oC, it has the characteristics of strong pressure resistance, impact resistance, strong acid resistance, strong alkali resistance, and oxidation resistance. It has the advantages of uniform micropore distribution, high pore density and good air permeability. The filter pore size can be controlled from a minimum of 0.5 microns to a maximum of 150 microns with ten different gauge filter elements, filter tubes, filter discs, and special-shaped filter elements. It is an ideal choice for pneumatic industry, oil-water separation, and air source treatment parts.
Material | stainless steel304/316L, bronze, brass,plastic PE PP |
Application | Manufacturing Plant, Food & Beverage Factory, Farms, Home use,Energy&Mining,Filtration system |
Pore Size | 0.5um, 2um, 5um, 10um, 15um, 20um, 40um, 60um, 90um, 100um |
Feature | Uniform distribution of particles, no slag, beautiful appearance |
Filter Rating | 99.99% |
Thickness | 1-1000mm |
Width | 0.1-500mm |
Shape | Disc,tube, cup or customized shape |
The advantages of the ultra-high molecular polyethylene sintered filter:
1. Resistance to strong acid, alkali corrosion, resistance to organic solvents;
2. High strength, good abrasion resistance,to ensure its service life.
3. High porosity (60%) to ensure a greater flow per unit area;
4. Smooth outer surface, impurities are not easy adhesion, backwashing easy and thorough;
5. Anti-fouling ability: the small size of the filter so that impurities can't be retained in the filter body;
6. Excellent mechanical properties.
7. Repeated use for long time.
8. No particle release.
