| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan / OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | $26.00 - $249.00 / Piece |
| Packaging Details: | paper box and wooden case |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Year |
| Material: | Stainless Steel | Size: | Standard, Customization |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| Product Name: | Stainless Steel Air Filter Housing | Housing Material: | Sus304, 316, 316L |
| Cartridge Filters Quantity: | 1 - 160 Element/rounds | Filter Cartridge Length: | 5, 10, 20, 30, 40, 60 Inch, OEM |
| Surface Treatment: | Polished & Sandblast | Top Cap Installed Type: | Bolts/Flange/Clamp Type |
| Usage: | Water/liquid Treatment Plant | Wall Thickness: | 1-5mm |
| Connector Type: | Code 0 3 6 7 8 9 | ||
| High Light: | SUS304 Stainless Steel Air Filter Housing,1mm stainless steel cartridge filter housing,1mm SS cartridge filter housing |
||

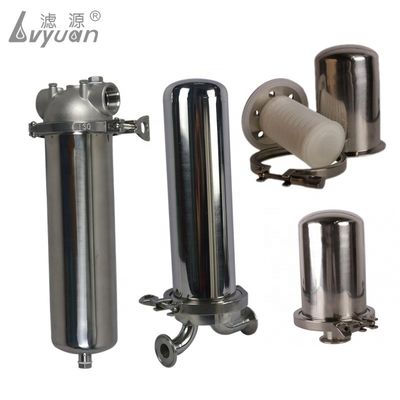

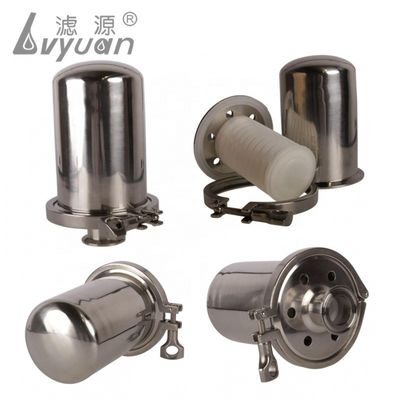

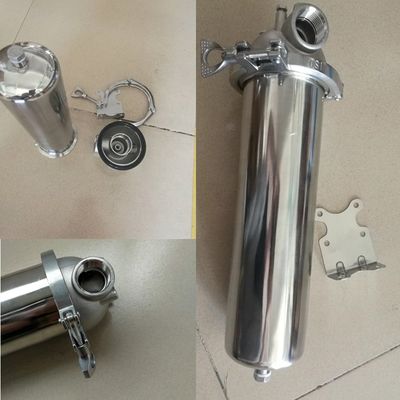

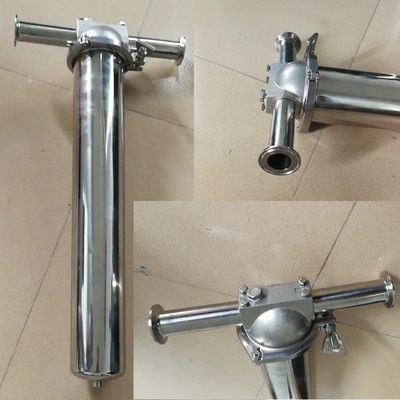

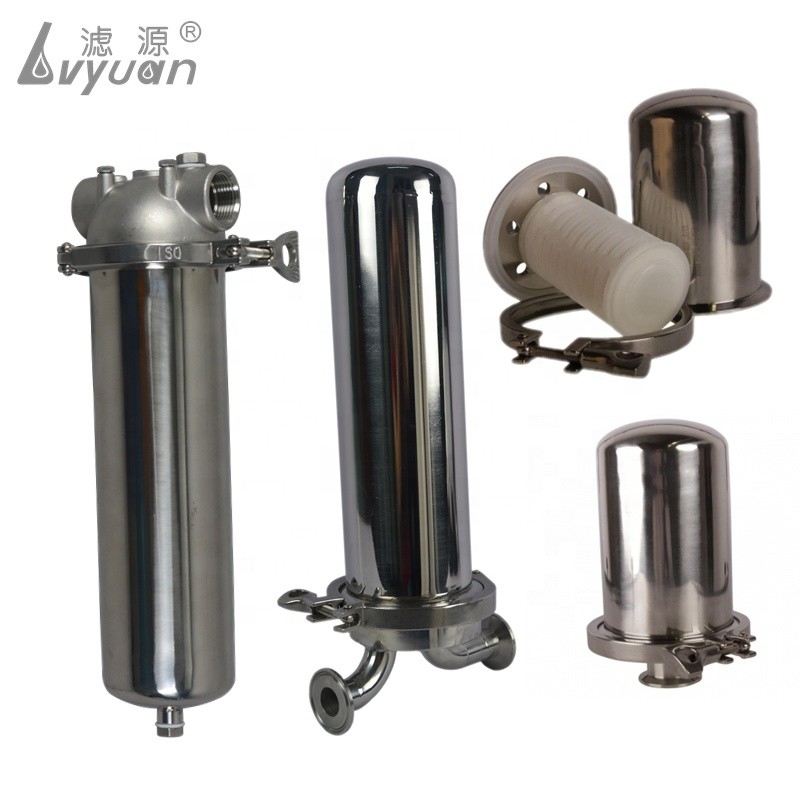

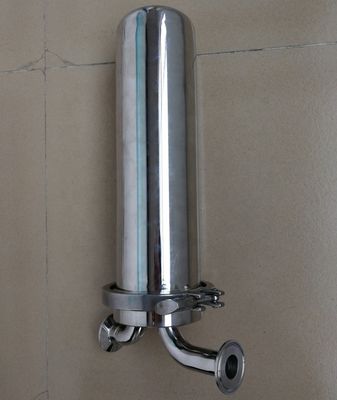

Product name: quick-fit stainless steel air filter
Product specifications: DN15~DN50
Product standards: ISO, DIN, IDF, 3A, etc.
Product material: stainless steel 304, 316, 316L
Connection method: quick installation, thread, flange, etc.

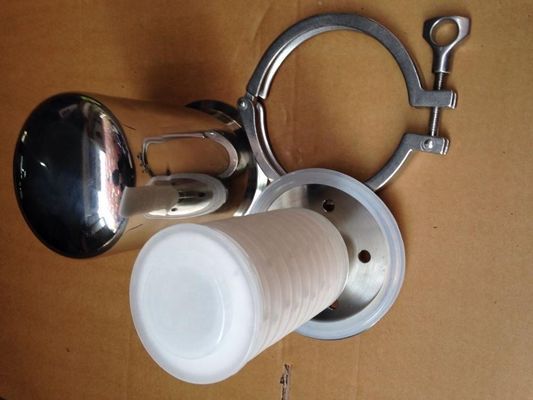

Product structure: The filter is a cylindrical cylindrical structure, made of 316 or 304 stainless steel, with a folded filter membrane core as the filter element, which can filter out particles and bacteria above 0.1μm in liquid and gas. It has the advantages of high filtration accuracy, fast filtration speed, low adsorption, no media shedding, no leakage, acid and alkali corrosion resistance, and convenient operation. It is a necessary equipment for modern medicine, electricity, beverage and environmental protection industries. The filter element is made of imported folded membrane with reliable quality and long service life. The material of the filter element can be selected according to user requirements.
Quality and use: The inside and outside of the product are treated with high-grade polishing equipment to meet the surface precision requirements; fast-installed pipe fittings and threaded pipe fittings are spot welded with imported welding machines. This product is suitable for beer, pharmaceutical, dairy, food, beverage, machinery manufacturers and large-scale sanitation projects
Application:
Gas sterilization, impurity removal and filtration.
Gas-liquid separation, gas oil removal, water removal filtration.
Air compressor pipeline, compressed air filter.
Gas filtration such as oxygen and carbon dioxide.
