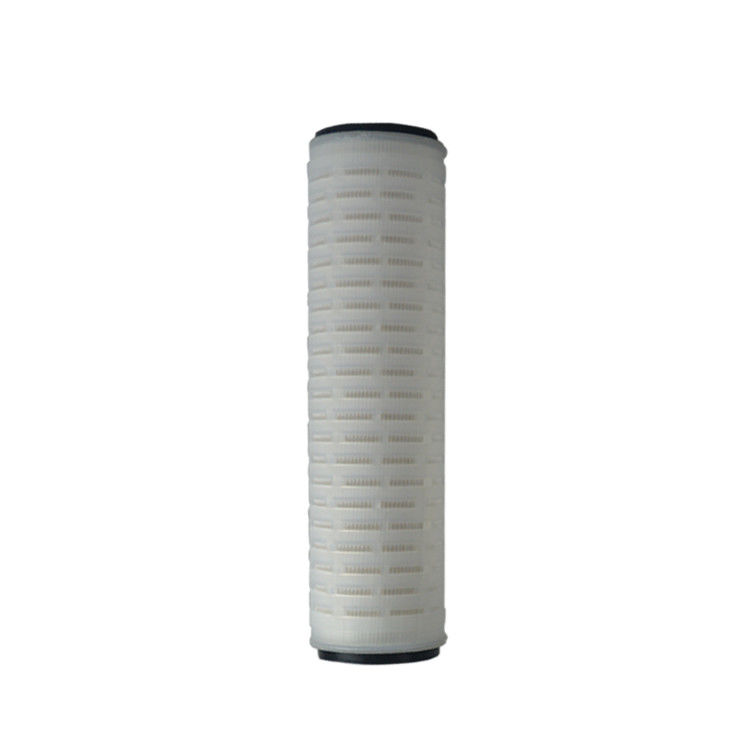

Fin 215 Pleated Filter Cartridge

Fin 215 Pleated Filter Cartridge

  • Fin 215 Pleated Filter Cartridge
  • Fin 215 Pleated Filter Cartridge
  • Fin 215 Pleated Filter Cartridge
  • Fin 215 Pleated Filter Cartridge
  • Fin 215 Pleated Filter Cartridge
  • Fin 215 Pleated Filter Cartridge
Fin 215 Pleated Filter Cartridge
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan/OEM
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 10-49 Pieces
Price: $3.00
Payment Terms: T/T L/C West Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine
Material: Pleated Item Name: OEM Size 10 20 30 40 Inch 5 Micron Water Pleated Filter Cartridge
Filter Membrane Material: PP/PVDF/PTFE/PES/Nylon Length: 5 ~ 60 Inch
Conector: Fin / 215 / 222 / 226 / DOE Micron: 0.01 ~ 100 Micron Pleated Filter Cartridge
O-ring Material: EPDM/Silicone/PTFE Sealing Method: Hot Melting Welding
Diameter: 70mm Inner Core: PP/SS Material
MOQ: Currently No Limited Selling Units: Single Item
Single Package Size : 30X5X5 Cm Single Gross Weight: 1.000 Kg
High Light:

Fin 215 Pleated Filter Cartridge


Fin 222 Pleated Filter Cartridge


50um Pleated Filter Element

OEM size 10 20 30 40 inch 5 micron water pleated filter cartridge with stainless steel core


Microporous pleated filter element, the main filter material is : Stainless steel wire mesh, sintered wire mesh, Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc. Most of the raw materials are imported from abroad.Pleated filter element is a kind of

deep filtration filter, it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.


Features and Benefits

Low differential pressures, high dirt-retention capacity and a long service life.
Pleated depth filtration with maximum filtration area.
high flow rate.
Great chemical compatibility and acid-base resistance for liquid filtration.
A wide range of fine filters which is suitable for different industries.

Outside Diameter: 2.7''(69mm)
Length: 9.75'',10'',20'',30'',40''
Filter media: PP
Support Layer/Cage/Core/ End caps : Polypropylene (PP)
Seal Material : Silicone,EPDM,NBR,Vilton,Teflon,E-FKM
Removal Rating: 0.1um, 0.22um, 0.45um, 1um, 3um, 10um, 20um, 50um
Maximum Operating Temperature 80°C at 1bar, support adaptors are recommended for temperature exceeds 50℃
Maximum Differential Pressure : 4.0Bar, normal temperature
Maximum Differential Pressure(Reverse Direction): 2.0Bar normal temperature
Maximum temperature sterilization : 5times, 20 minutes cycles at 120℃



Product Overviews

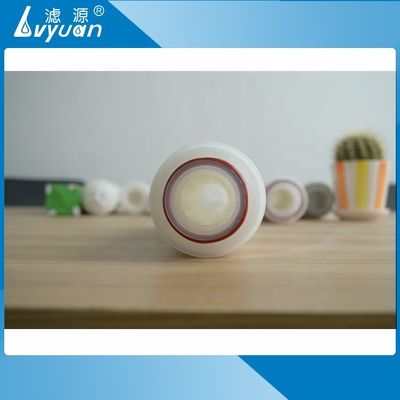

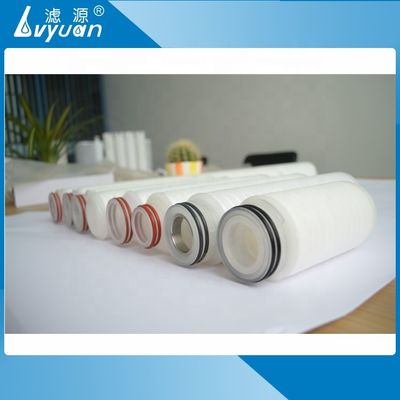

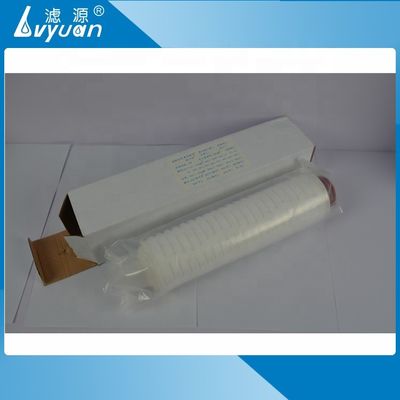

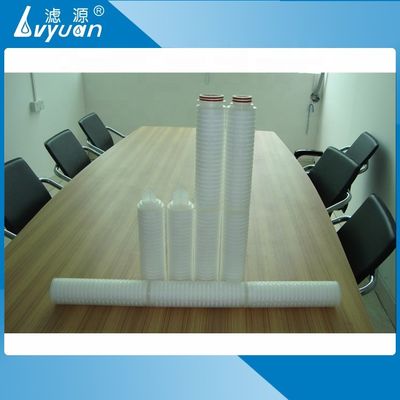

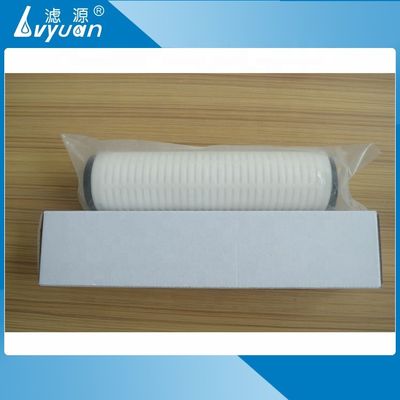

Fin 215 Pleated Filter Cartridge 0

Fin 215 Pleated Filter Cartridge 1Fin 215 Pleated Filter Cartridge 2




Fin 215 Pleated Filter Cartridge 3Fin 215 Pleated Filter Cartridge 4
