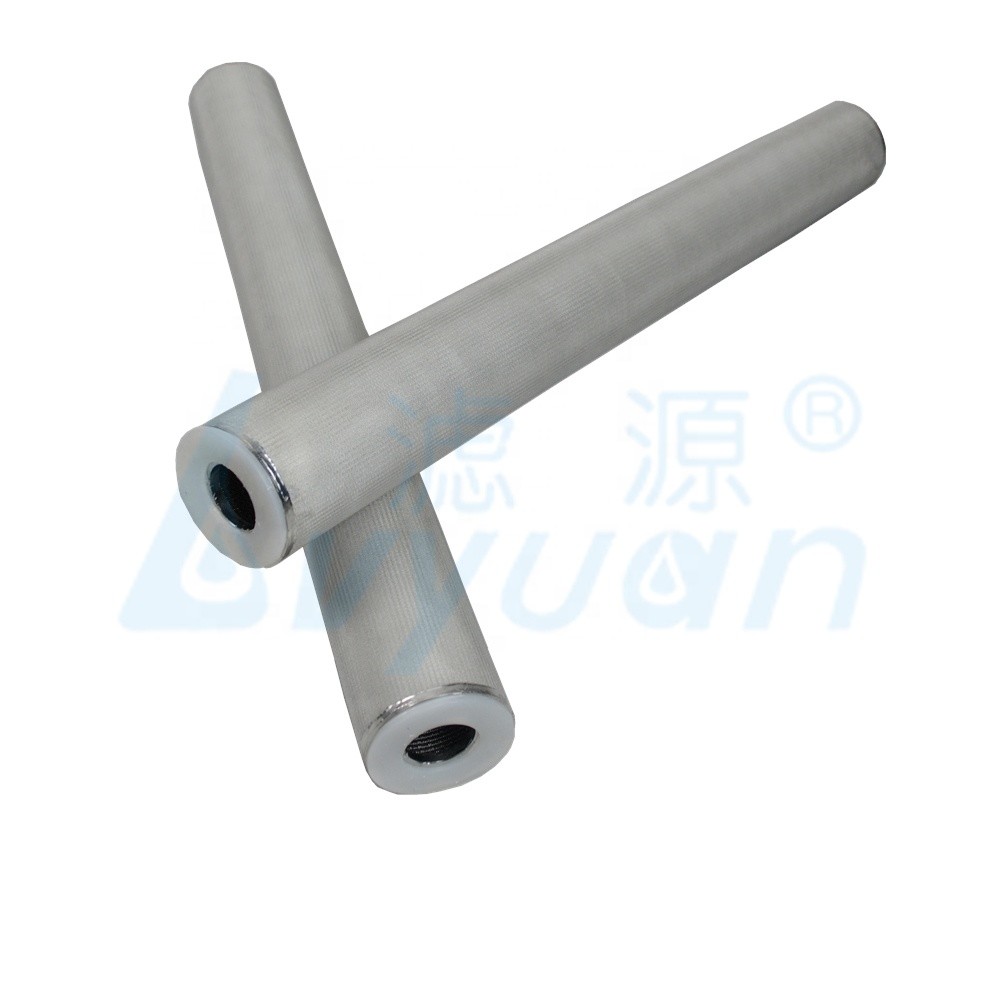

SS316L Porous Metal Filter
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan/OEM
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: $28.78 - $200.00 / Piece
Packaging Details: paper box
Payment Terms: T/T L/C West Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
After Warranty Service: Online Support Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Core Components: Pressure Vessel
Warranty: 1 Year After-sales Service Provided: Online Support
Feature: Good Permeablity Diameter: Customer'demand
Material: Stainless Steel Shape: Cylinder
Usage: Water Treatment Application: Industry
Color: Sliver Packing: Paper Box
Other Name: Titanium Bars Filter Cartridge Advantage: Reuse
High Light:

50% Porous Metal Filter


SS316L Pleated Filter Cartridge


50% Porous Metal Filter

Sintering Stainless Steel Pleated Filter Cartridge Micron Stainless Steel Filter Tube
Product Description
Diameter (Length) Diameter (Width) Thickness Customized
Sintered porous round discs
φ5-φ300mm 0.5-10mm Yes
Sintered porous sheets 5-300mm 5-300mm 0.5-10mm Yes
Sintered porous tubes 100-1200mm φ20-φ200mm 1-10mm Yes
Sintered porous cartridge 100-1200mm φ20-φ200mm 1-10mm Yes

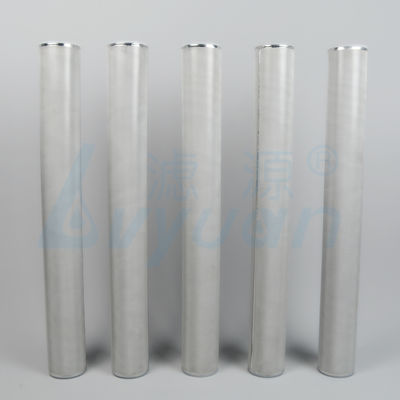

SS316L Porous Metal Filter 0

Features & Benefits
• High reliable standard specifications
• Low pressure drop due to high porosity
• Accurate filtration rating
• Easily cleanable by conventional chemical cleaning and with a long service life
• Pleated design increased the filtration area
Material of Construction
Filter media: SS304/SS316L sintered fiber web; SS304/SS316L wire woven cloth
Support layer: SS
Core / Cage / End adaptor: SS304/SS316L
Seal Material : Silicone, EPDM, Buna, Viton, Teflon
Cartridge Dimensions
Outer Diameter: 65mm
Nominal Length: 5", 10", 20", 30", 40"
Micron rating: 1, 3, 5....μm

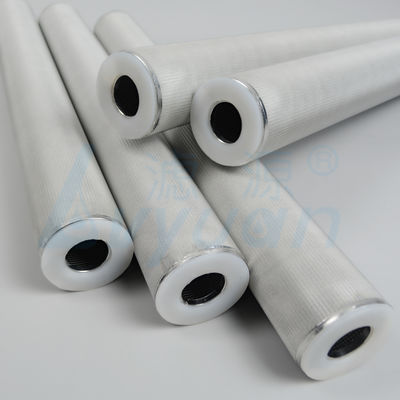

SS316L Porous Metal Filter 1




We have 3 type stainless steel fillter: stainless steel pleated filter, stainless steel sintered powder filter, stainless steel mesh filter.

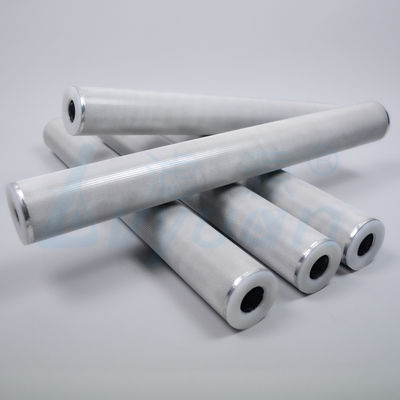

SS316L Porous Metal Filter 2

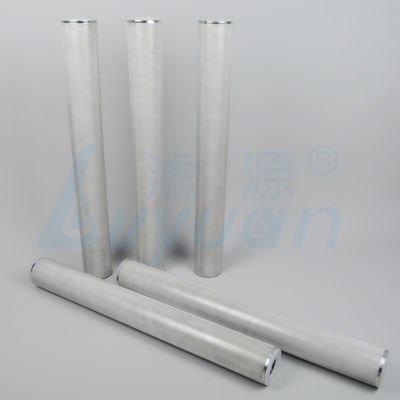

SS316L Porous Metal Filter 3

1. Secondary filter for various hydraulic oils and lubricating oils of machinery industry.
2. Filtration and purification for the molten polymers of chemical fiber and film industry.
3. Filtration of high-temperature corrosive solutions of petrochemical industry.
4. Pharmacy material filtration, washing and drying.

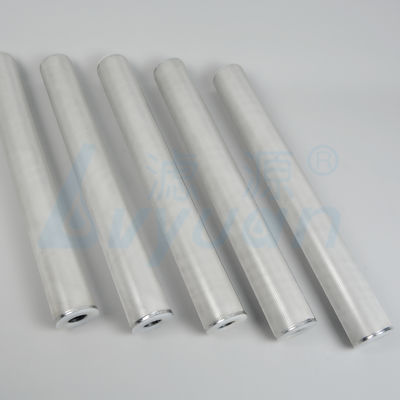

SS316L Porous Metal Filter 4



SS316L Porous Metal Filter 6
Our company:
SS316L Porous Metal Filter 7
Our Service

1. Accept customized length, Package, logo etc, as you offer your drawing and picture.
2. Sample order, accept MOQ=10.
3. We will reply to you in 24 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the lastest process.
5. Any doublt, pl contact with us, we will help you solve the problem asap.
