| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan/OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | $10.00 - $99.00 / Piece |
| Packaging Details: | OEM 0.2 0.45 1 3 5 10 25 50 80 100 um micron Sintered stainless steel porous filter Cartridge with 226 M30 M20 DOE end cap/sSingle packaging (inner box) |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Product Name: | Sintered Stainless Steel Filter |
| Micron Rate: | 0.1 To 300 Micron | OEM Dimension: | Available |
| Length: | 5", 10", 20", 30", 40", 50'', 60'' Inch | Stainless Steel Material: | 304, 316, 316L |
| Layer: | Pleated/mesh Cartridge Filter | Usage: | Gas, Liquid Filtration |
| Interface Form: | 222,226,215, M36, M24, M22, M20 Thread Interface | Heat Resistence: | - 200 -- 500 Degree |
| Working Pressure: | 0.1 To 30Mpa | Core Components: | Liquid Filter Accessories |
| High Light: | 100um Micron Cartridge Filters,0.2um porous filter Cartridge,SS316L Micron Cartridge Filters |
||

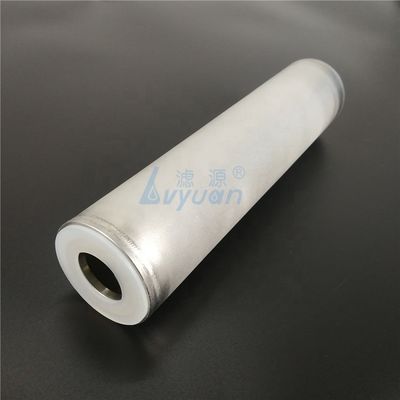

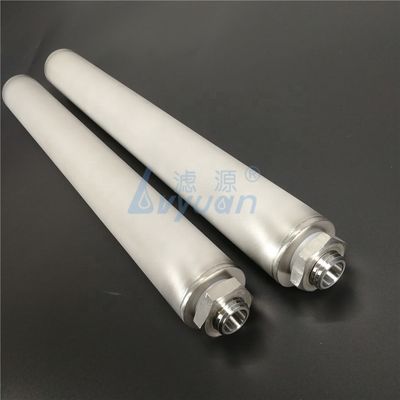

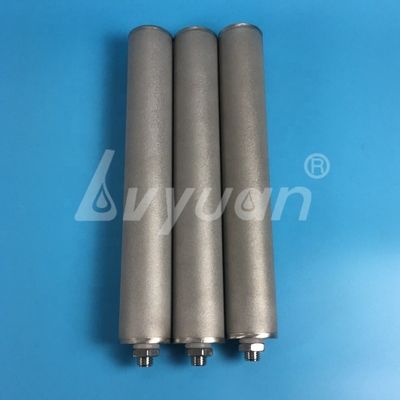

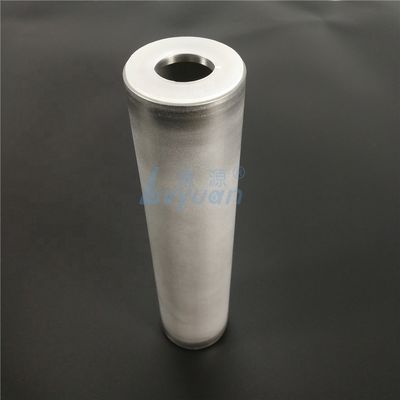

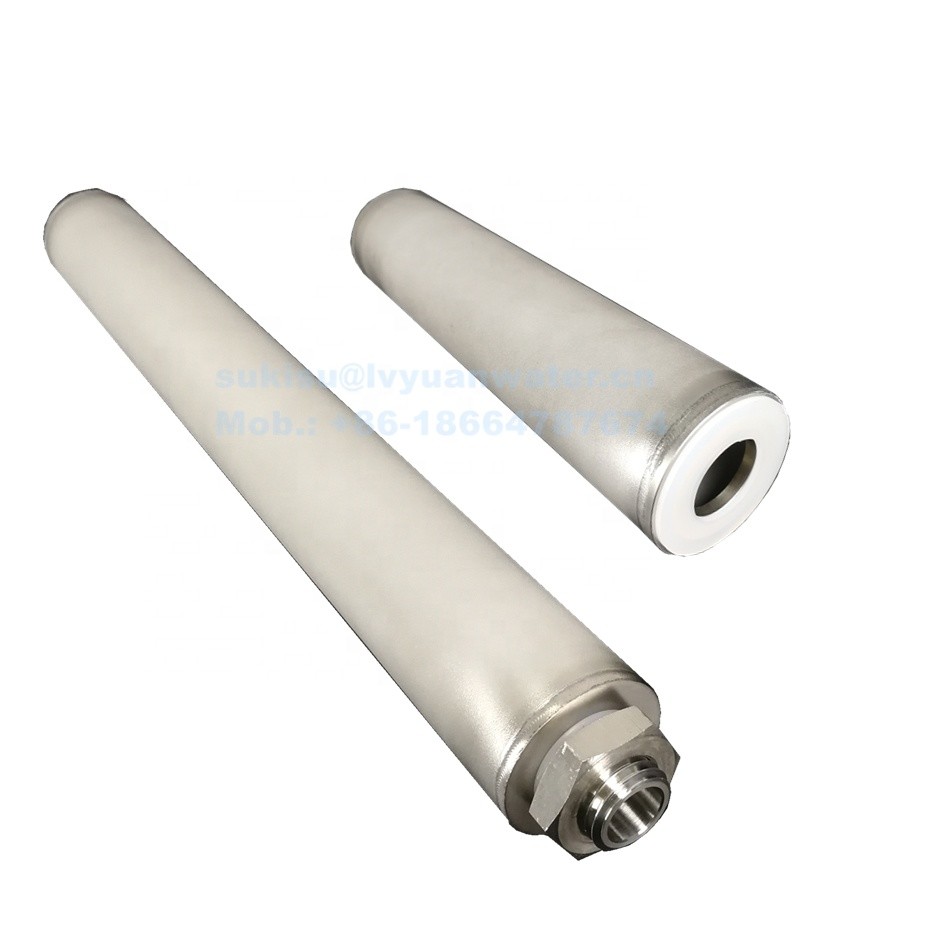

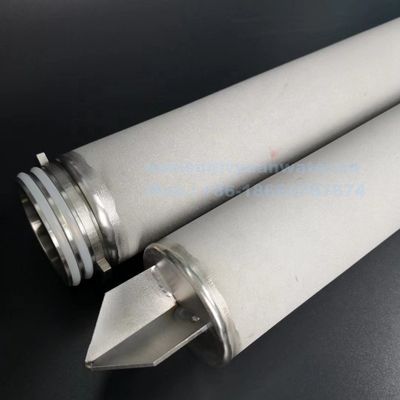

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
| Fiter Cartridge dimensions | |
| Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer's request. |
| Material of constructions | |
| Filter media | SUS304, 316, 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Te-flon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
