| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan/OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 10-49 Pieces |
|---|---|
| Price: | $4.50 |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |

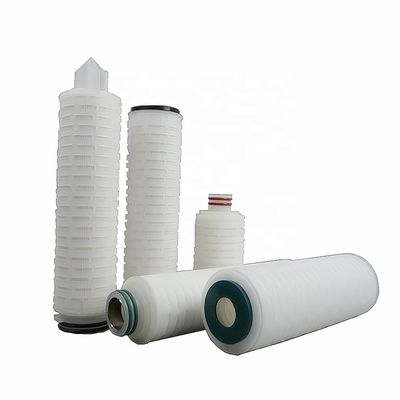

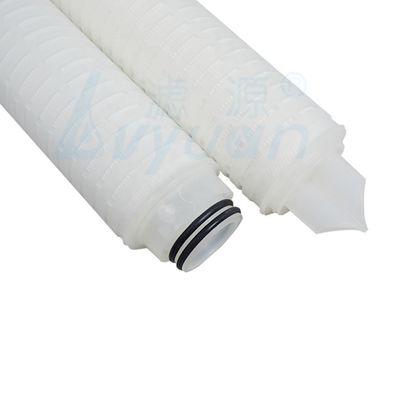

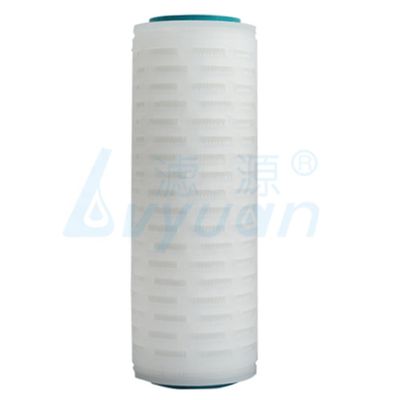

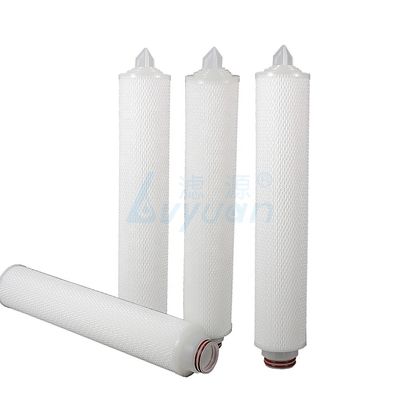

| Material: | Polypropylene | Name: | 5/10/20 Inch Pleated Membrane 0.1 Microns Pes Pleated Cartridge |
|---|---|---|---|
| Filter Membrane Material: | PP/PVDF/PTFE/PES/Nylon | Length: | 5 / 10 / 20 / 30 / 40 / 50 / 60 Inch |

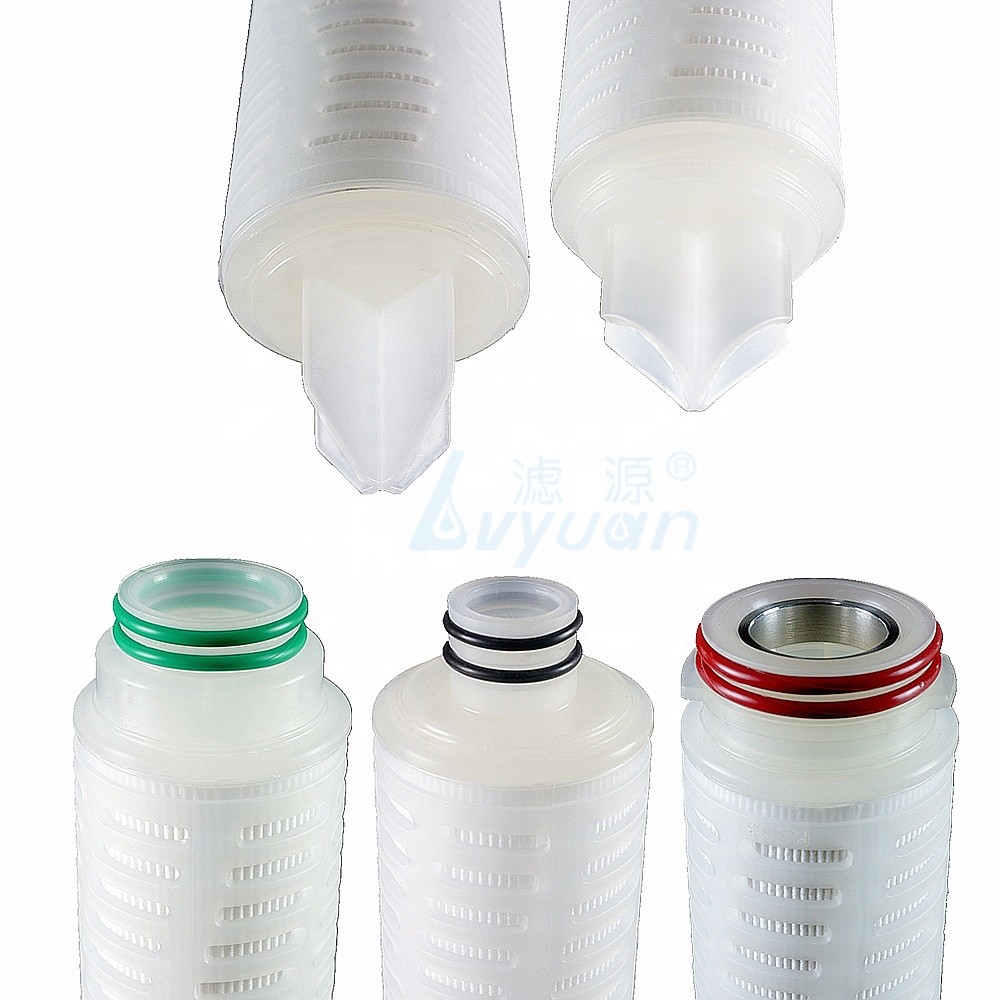

| Conector: | Fin/222/226/215/DOE/Thread | Micron: | 0.22/0.5/1/3/5/10/25/50/75/100/150 |
| O-ring Material: | EPDM/Silicone/Te-flon | Sealing Method: | Hot Melting Welding |
| Diameter: | 70mm/OEM | Inner Core: | PP/SS/OEM |
| MOQ: | Currently No Limited | Selling Units: | Single Item |
| Single Package Size : | 68X40X40 Cm | Single Gross Weight: | 23.000 Kg |
| Highlight: | 20inch pleated Membrane Cartridge Filter,28mm PES Membrane Cartridge Filter,0.1 Micron RO membrane cartridge |
||
Feature
1 High porosity, low pressure drop
2 High temperature and high pressure resistance
3 Suitable for filtration of high viscous liquids
4 Suitable for filtration under high temperature condition
5 Easy to clean.
| Product name | 0.1, 1 micron pp pleated water filter cartridge |
| Filter media | PP |
| End cap material | PP |
| Center core | PP |
| Micron rating | 0.1, 0.22, 0.45, 1, 2, 5, 10, 20, 50 micron |
| Length | 10", 20", 30", 40" 50", 60", 70" |
| Outer Diameter | 64, 66, 69mm |
| Innner Diameter | 28mm |
| Filtration Area(m2) | 0.65m2 per 10" |
| Normal operating temperature | ≤55℃ |
| Custimized/OEM | Available |
FAQ
1. Q: Are you manufacturer ?
A:Yes, we are large-scale manufacturer , established in 1985.
2.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
3.Q: Could you provide free sample of filter bag/cloth/cartridge?
A: Yes, we could provide free sample if the value not big, but the courier charge will be on your side.
4.Q: What’s your payment terms ?
A: Mainly accept West Union and T/T, L/C, DP is also available for big amount.
For Samples: 100% in advance via West Union or T/T.
Formal order: 50%T/T in advance and balance against the Copy of B/L. Other payment terms can be further discussed.
