| Place of Origin: | Guangdong, China |
| Brand Name: | LVYUAN/OEM |
| Minimum Order Quantity: | 10 - 499 Pieces |
|---|---|
| Price: | $9.50 |
| Packaging Details: | 222/fin 10 microns pleated fiber material oil filter element cartridge for oil filed 40 inch filter treatment:10" 50PCS/CTN, 20" 25PCS/CTN, 30" 25PCS/CTN, 40" 25PCS/CTN. |
| Core Components: | Pressure Vessel | Warranty: | 1 Year |
|---|---|---|---|
| Name: | Oil Filter Element Cartridge | Filter Membrane Material: | Polypropylene/Glass Fiber/PET |
| Length: | 5 / 10 / 20 / 30 / 40 / 50 / 60 Inch | Conector: | DOE, 222/Flat, End |
| Micron: | 1 ~ 100um | O-ring Material: | EPDM/Silicone/NBR |
| Sealing Method: | All-in-One | Diameter: | 64mm/Customized |
| Inner Core: | Plastic PP | MOQ: | Currently No Limited |

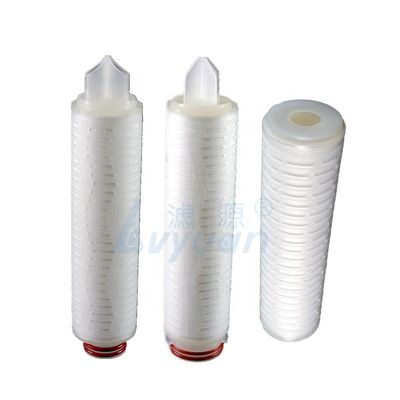

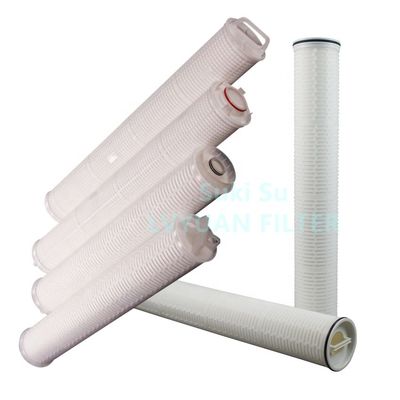

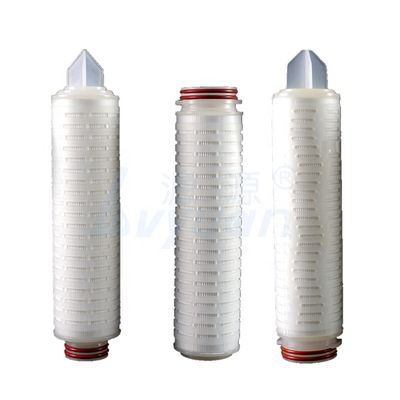

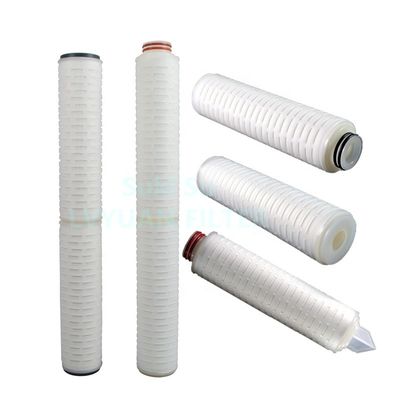

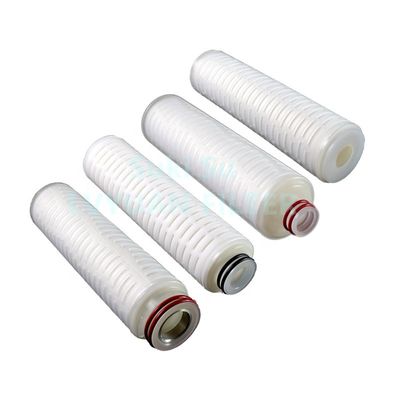

Product Name | OD 2.5 inch 222/fin 10 microns pleated fiber material oil filter element cartridge for oil filed 40 inch filter treatment | ||||||
Length: | 10"/20"/30"/40"/50" | ||||||
OD: | 64mm | ||||||
ID: | 28mm | ||||||
Filter membrane media: | Glass fiber, Polypropylene PP, PET | ||||||
Seal Material: | EPDM, Silicone, NBR, Viton | ||||||
End cap material: | 222+FIN END; DOE; 222+Flat End | ||||||
Center core: | Polypropylene PP | ||||||
Outer cage: | Polypropylene PP, blue/red/white colors optional. | ||||||
Microns rating: | 1um, 2um, 3um, 5um, 10um, 20um, 25um, 30um, 50um, 75um,100um | ||||||
Operating pressure: | Withstand differential pressure up to 60psi(4bar) at ambient temperature. Differential pressure is 35psi (2.5bar) up to 52℃. | ||||||
Service condictions: | 5 bar at 20℃； 3bar at 65℃ | ||||||
Applications: | RO water treatment prefiltration; Electronic; Oil & Gas liquid; Petroleum industry. | ||||||
MOQ | 50pcs/Box, 25pcs/Box | ||||||
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
Different length & variety end cap are optional.
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
