Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Lvyuan / OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$0.50 - $2.00 / Piece
Payment Terms:	T/T

Contact Now

Detailed Product Description

Size:	Customized	Product Name:	Industrial PE Sintered Filter
Micron Rate:	0.1 To 300 Micron	Material Option (customized):	PP,PE, PA, PTFE, Stainless Steel, Bronze Etc
Length:	OEM, 5", 10", 20", 30", 40", 50'', 60''	Stainless Steel Material:	304, 316L
Interface Form:	222,226,215, M36, M24, M22, M20 Thread Interface	End:	DOE, SOE, Insert, Screw Type
Usage:	Gas, Liquid Filtration	Working Pressure:	0.1 To 30Mpa
Shape:	Tube, Cup, Disc, Stick, Plate, Sheet, Etc	Core Components:	Filter Accessories
Single Package Size :	10X10X20 Cm	Single Gross Weight:	1.000 Kg
Package Type:	OEM Industrial Waste Water Gas Air Treatment Sintering Porous Media PE Powder Plastic Sintered Liquid Cartridge Filter Please Kindly Let Us Know Your Dimension Requirement, We Will Offer The Quotation For Your Reference. Carton
High Light:	Plastic Sintered Liquid Cartridge Filter , PTFE 30" Liquid Cartridge Filter

OEM Industrial Waste Water Gas Air Treatment Sintering Porous media PE powder Plastic sintered Liquid cartridge filter

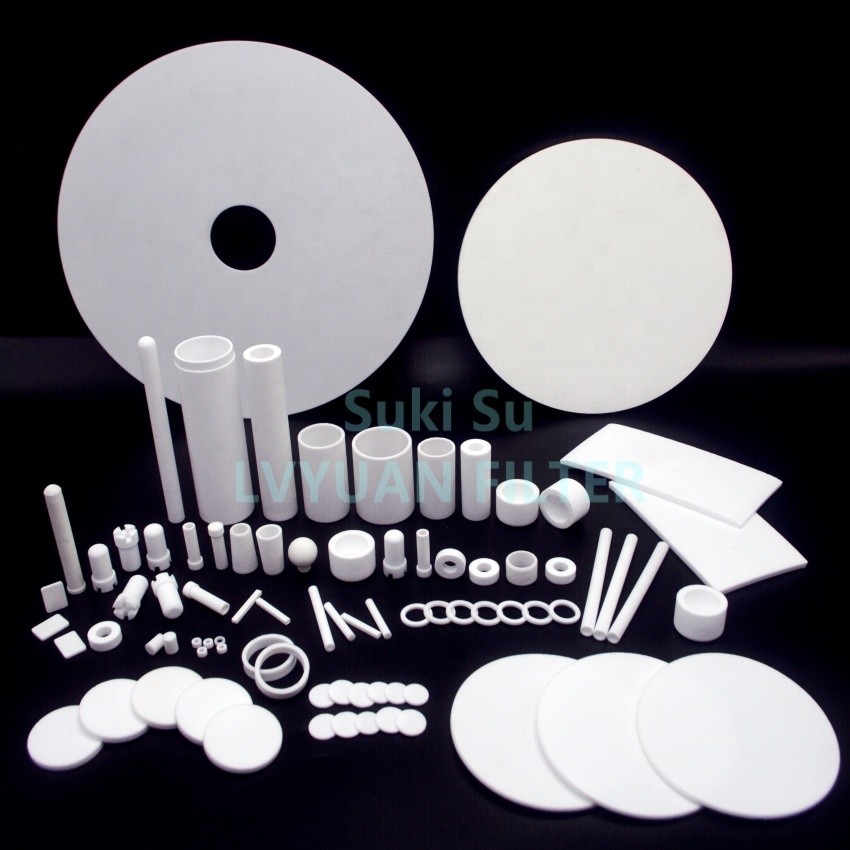

Lvyuan produces wide ranges of sintered porous plastic filter products, including porous PE, HDPE, PTFE, PVDF, PA, Nylon 6, fiber-glass with shapes of tube, rod, candle, sheet, plate, disc, stick etc. With various filtration rate, shapes and features, sintered porous plastic filter cartridges are widely used in water treatment, chemical engineering, medical treatment, automobile, environmental protection and other industries, such as oil water separator and silencer, drunk driving tester, blind plug for medial treatment, syrup and grease filter device, anti-explosion slices for industrial battery, acid-proof slices for automobile battery, waste water treatment, water purification filter system and more. Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

Various Shape Size

Double open end (porous tube or pipe)

Single open end (cup shape)

Porous plate, sheet, disk shapes

Welded with screw cap, M20, M27, M30 etc

Product Feature

1. High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application

Filter Media	PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate	0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension (mm)	31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type	DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature	PE≤82℃; PTFE≥200℃; PA≤120℃

Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment 3

Application

Medical & Pharmaceutical

1. Impurity removal, decarbonization and fine filtration. 2. Acid Gas Dry deducting 3. Decarbonization Filtration 4. Self sealing filters in suction liner bag

Food & Beverage

1. Remaining yeast and diatomaceous earth filtration 2. Clarification filtration in beverage 3. Water filtration in beverage, brewery 4. Sterile air filtration in beer and brewery

Oil & Gas

1. Organic Solvents recycling filtration 2. Injection water filtration 3. Steam, Compresses air and catalyst filtration 4. Final product end filtration

Chemical

1. Catalyst recovery 2. Medicine intermediate decarbonization and fine filtration 3. H2O2 process filtration

Water Treatment

1. Protection of reverse osmosis in desalting of sea water 2. Sterile Ozone filtration and ozone aeration 3. Protection of ultra filter, RO, EDI systems

Industry

1. Filters in flue gas analysis and CEMS systems 2. Air aeration 3. Muffler and Silencer 4. Compress air filtration 5. CMI Porous Metal Instrument filters
