Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan / OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $0.50 - $2.00 / Piece
Packaging Details: paper box and wooden case
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Sintered Porous Polyethylene Filters Micron Rate: 0.1 To 300 Micron
Material Option (customized): PP,PE, PA, PTFE, Stainless Steel, Bronze Etc Length: OEM, 5", 10", 20", 30", 40", 50'', 60''
Stainless Steel Material: 304, 316L Interface Form: 222,226,215, M36, M24, M22, M20 Thread Interface
End: DOE, SOE, Insert, Screw Type Usage: Gas, Liquid Filtration
Working Pressure: 0.1 To 30Mpa Shape: Tube, Cup, Disc, Stick, Plate, Sheet, Etc
High Light:

PE Sintered Filter Element

,

Molecular Porous Sintered Filter Element

,

Molecular Porous Sintered Plastic Filter

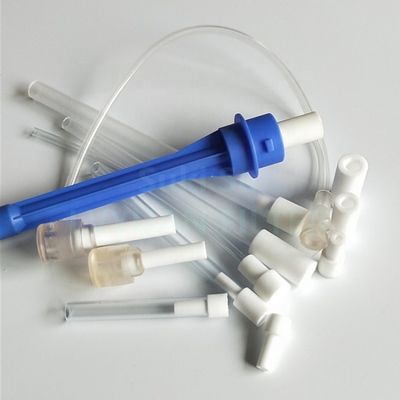

Medical use High polymer molecular Sintered Porous Polyethylene Filters PE filter element for liquid oxygen air tube connection


1.High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application

Filter Media
PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate
0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension
31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180,
(mm) 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type
DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature
PE≤82℃; PTFE≥200℃; PA≤120℃

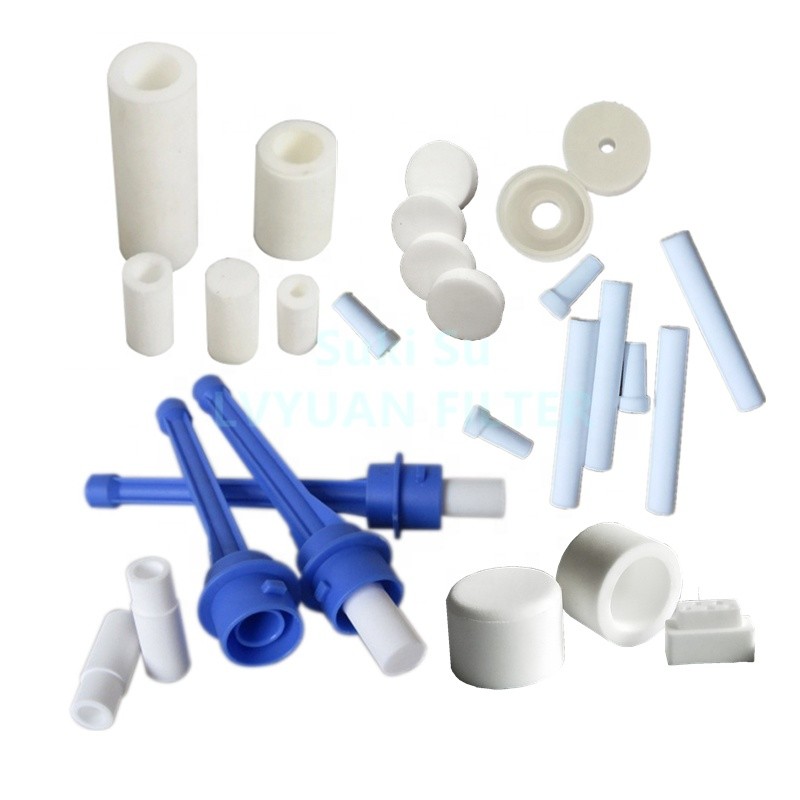

Various Shape Size
High Polymer Molecular Porous PE Sintered Filter Element For Liquid Oxygen Air Tube Con 0
Double open end (porous tube or pipe)

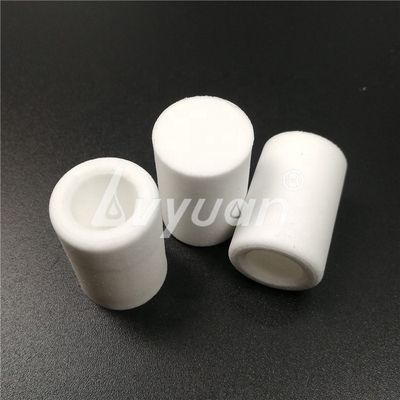

Single open end (cup shape)
High Polymer Molecular Porous PE Sintered Filter Element For Liquid Oxygen Air Tube Con 1

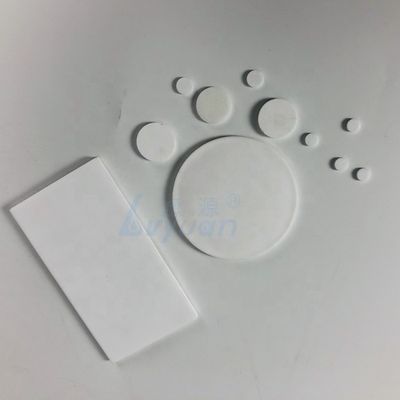

Porous plate, sheet, disk shapes



High Polymer Molecular Porous PE Sintered Filter Element For Liquid Oxygen Air Tube Con 2
