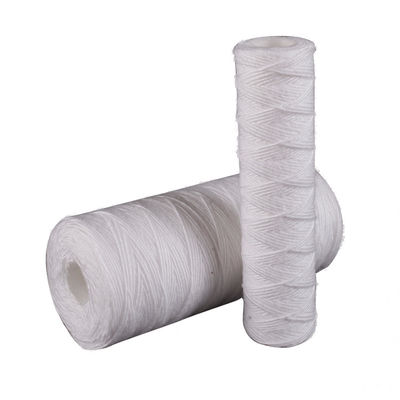

China Manufacturer pp string wound filter cartridge with high quality

China Manufacturer pp string wound filter cartridge with high quality

  • China Manufacturer pp string wound filter cartridge with high quality
  • China Manufacturer pp string wound filter cartridge with high quality
  • China Manufacturer pp string wound filter cartridge with high quality
  • China Manufacturer pp string wound filter cartridge with high quality
  • China Manufacturer pp string wound filter cartridge with high quality
  • China Manufacturer pp string wound filter cartridge with high quality
China Manufacturer pp string wound filter cartridge with high quality
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan/OEM
Certification: GS
Payment & Shipping Terms:
Minimum Order Quantity: 10 - 499 Pieces
Price: $1.00
Packaging Details: Polypropylene material water string candle filter 40 inch 5 micron pp yarn filter for 10/20/30/40/50/60 inch SS filter housing: 51x31x33cm- 10" 25pcs/20" 25pcs
Contact Now
Detailed Product Description
Power (W): 0 Voltage (V): 0
After-sales Service Provided: Overseas Call Centers Warranty: 1 Year
Type: Reverse Osmosis Use: Household Pre-Filtration
Application: Car, RV, Outdoor, Hotel, Garage, Commercial, Household Power Source: Manual
Item: Pp String Wound Filter Cartridge Material: Polypropylene Fiber , Absorbent Cotton , Glass Fiber
Core: PP/SS Micron: 1/5/10/20/30/50/75/100
Inner Diameter: 28mm / 30mm / OEM Length: 5" / 10" / 20" / 30" / 40" / 50" / 60"
PP Wound Filter+PP Core: 60℃ PP Wound Filter+SS: 100℃
Cotton Filter+SS: 120℃ Glass Fiber+SS: 180 - 300℃

China Manufacturer pp string wound filter cartridge with high quality

Product Description
China Manufacturer pp string wound filter cartridge with high quality 0

Water string candle filter

Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Product name
Polypropylene material water string candle filter 40 inch 5 micron pp yarn filter for 10/20/30/40/50/60 inch SS filter housing
Material
Polypropylene fiber , Absorbent cotton , Glass fiber
Precision
1-100 micron
Outer diameter
28mm-30mm/OEM
Inner diameter
60mm-63mm /115mm /OEM
Length
9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
Connector
DOE/215/222/226/Fin/OEM


Max operating temperature
PP with PP core : 60 °C
PP with SS core : 100 °C
Cotton with SS core : 120 °C
Glass fiber with SS core : 180 °C -- 300 °C
Detailed Images

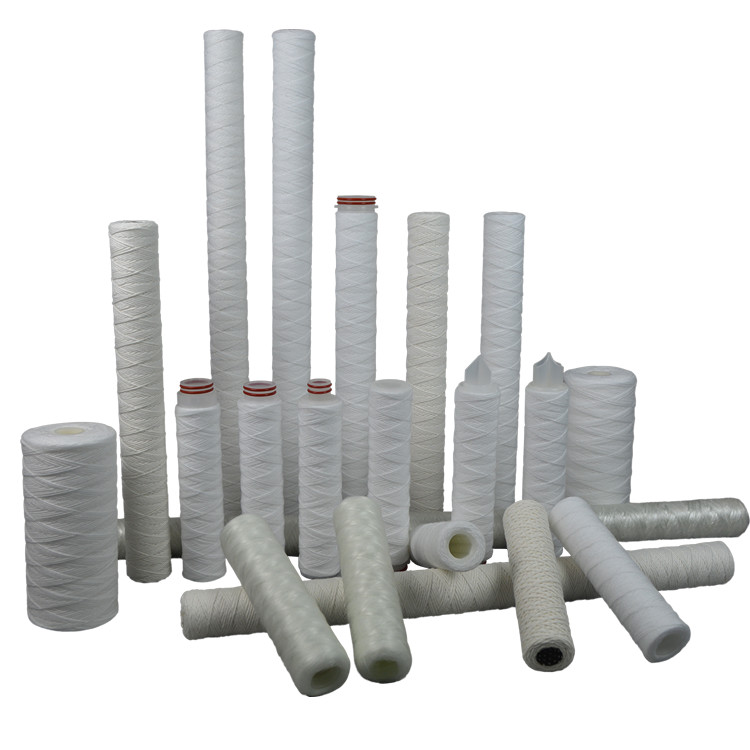

String wound PP sediment Filter with OEM size

This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

China Manufacturer pp string wound filter cartridge with high quality 1
China Manufacturer pp string wound filter cartridge with high quality 2
China Manufacturer pp string wound filter cartridge with high quality 3
China Manufacturer pp string wound filter cartridge with high quality 4
China Manufacturer pp string wound filter cartridge with high quality 5
China Manufacturer pp string wound filter cartridge with high quality 6

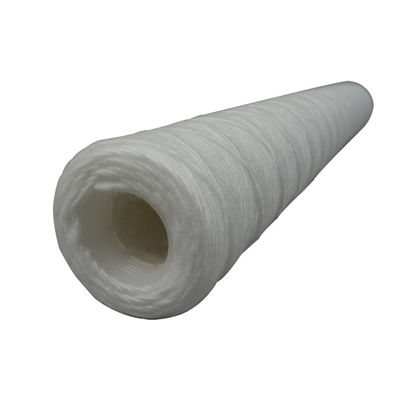

Jumbo PP yarn string wound water filter

Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.


The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

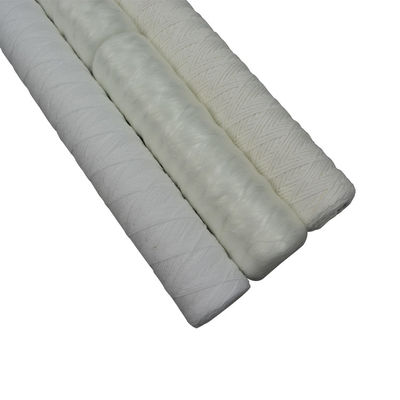

Fiberglass wire wound filter cartridge

The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

China Manufacturer pp string wound filter cartridge with high quality 7
China Manufacturer pp string wound filter cartridge with high quality 8
China Manufacturer pp string wound filter cartridge with high quality 9
China Manufacturer pp string wound filter cartridge with high quality 10

Absorbent cotton string wound filter

Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L

China Manufacturer pp string wound filter cartridge with high quality 11
China Manufacturer pp string wound filter cartridge with high quality 12
China Manufacturer pp string wound filter cartridge with high quality 13

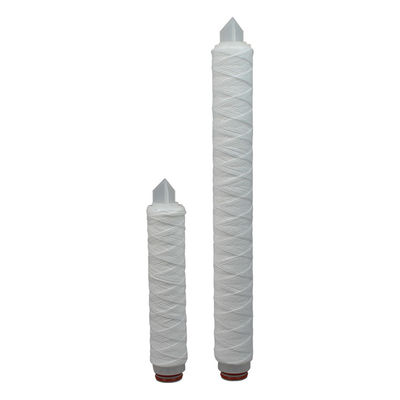

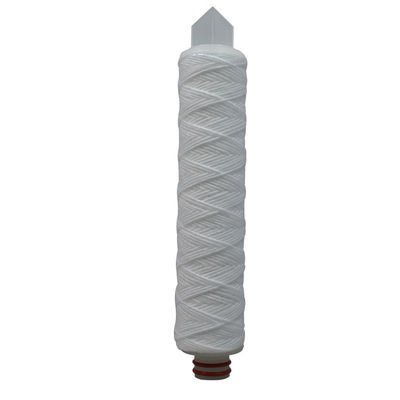

Polypropylene string wound PP yarn filter

Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.

China Manufacturer pp string wound filter cartridge with high quality 14
China Manufacturer pp string wound filter cartridge with high quality 15
China Manufacturer pp string wound filter cartridge with high quality 16
China Manufacturer pp string wound filter cartridge with high quality 17
China Manufacturer pp string wound filter cartridge with high quality 18
Application
China Manufacturer pp string wound filter cartridge with high quality 19

RO SEA WATER TREATMENT

China Manufacturer pp string wound filter cartridge with high quality 20

POWER PLANT

China Manufacturer pp string wound filter cartridge with high quality 21

BIOLOGY TECHNOLOGY

China Manufacturer pp string wound filter cartridge with high quality 22

PETROCHMICAL INDUSTRY

China Manufacturer pp string wound filter cartridge with high quality 23

BOTTLED MINERAL WATER

China Manufacturer pp string wound filter cartridge with high quality 24
BEER & BEVERAGE FILTRATION
Packing & Delivery
China Manufacturer pp string wound filter cartridge with high quality 25
Our Company
China Manufacturer pp string wound filter cartridge with high quality 26
China Manufacturer pp string wound filter cartridge with high quality 27
Certifications
China Manufacturer pp string wound filter cartridge with high quality 28

Let's Make Custom Water Filter Cartridge For You Now.
