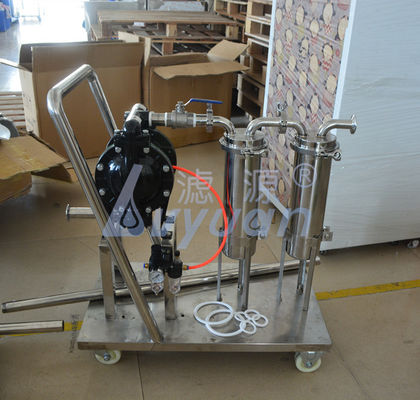

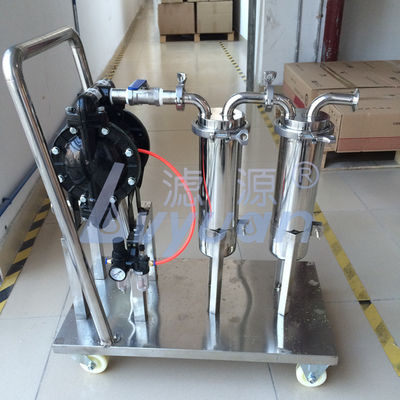

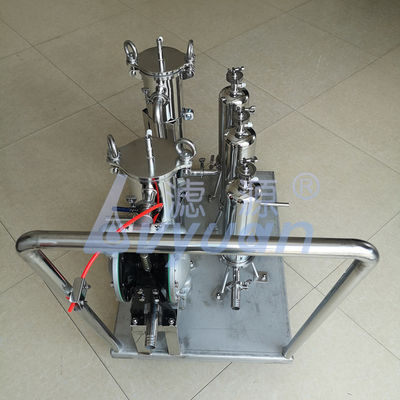

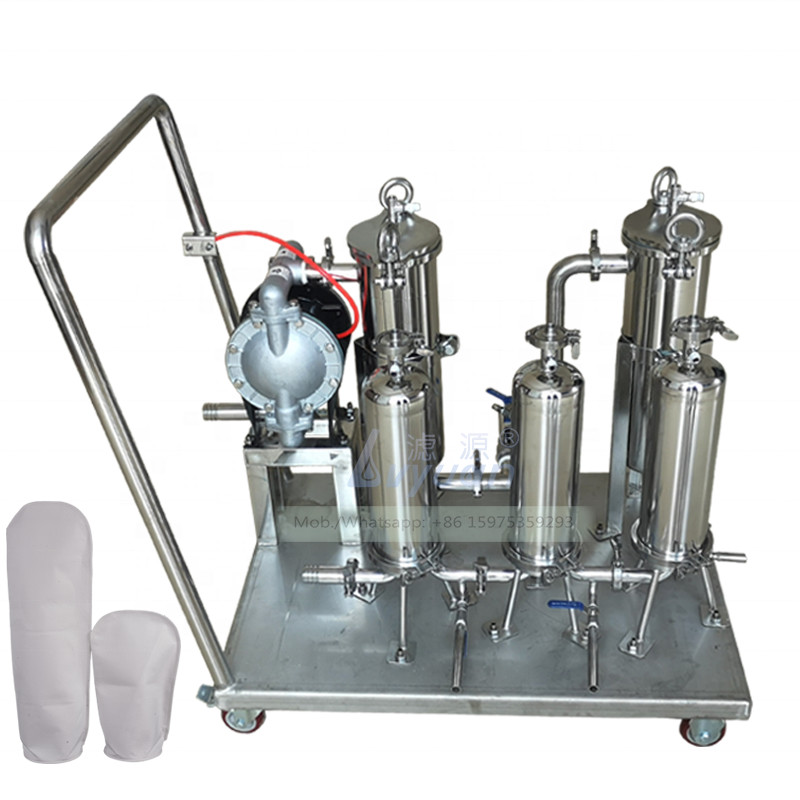

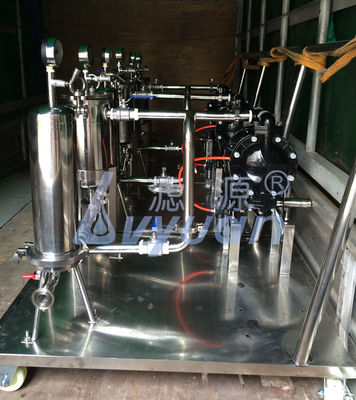

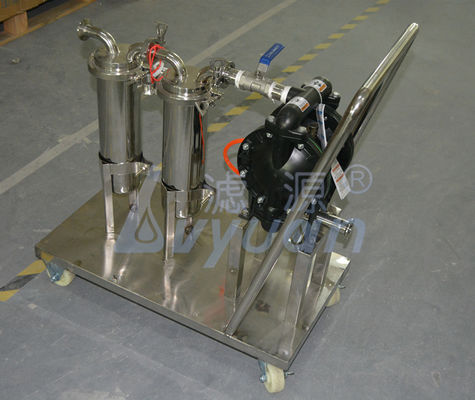

Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine

Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine

  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
  • Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine
Product Details:
Place of Origin: Guangdong, China
Brand Name: LVYUAN/OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1-4 Units
Price: $2,850.00
Contact Now
Detailed Product Description
Core Components: Pressure Vessel Warranty: 1 Year
After-sales Service Provided: Online Support Material: SS304 / SS316L
Filter Bag Material: PE BAG/PP BAG Bag Filter Quantity: Single Bag Filter Housing
Surface Treatment: Polished & Sandblast Seal O-ring: Silastic/NBR/EPDM/Viton
Top Cap Installed Type: Clamp Type/Bolt Type Inlet & Outlet Type: Internal Thread/Flange
Connector Type: 222/226/DOE Packaging Method: Export Standard Box
Selling Units: Single Item Single Package Size : 75X50X75 Cm
Single Gross Weight: 30.000 Kg
High Light:

50 Micro Bag Filter Machine

,

180mm Liquid Filtration Machine

,

SS304 Liquid Filtration Machine

Trolley models multiple stages stainless steel 304 316L industrial bag filter machine with 50 micro bag liquid filter vessel

Product Description

Completely oil filter system machine 1/2/3/4/5/6/7 stage stainless steel cartridge water filter housing with filter cartridge. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a metal netting, to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified oil into the filtration device.The filter device is a small manual compression plate and frame filter press, using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities trapped in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter paper.The filtration pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter paper surface, the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is close to saturation state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.This kind of oil filter machine can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and lubricating oil refining.

Bag Item Flow rate Filtration area (m²) Length (mm) Bag diameter (mm)
#1 20 0.25 410 180
#2 40 0.5 810 180
#3 6 1 210 102
#4 12 0.15 356 102
#5 25 0.3 870 175



Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine 0


Filter machine spec.



1.SS filter housing
2.Discharge valve
3.Combination valve
4.Pressure gauge
5.Pump
6.Motor
7.Rough filter
8.Magnetic filter
9.In-line filter
10.Flow gauge
11.Electrical apparatus & elements







FEATURE

1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
2
Working pressure 8kg/0.8Mpa is supported.
3
Use the tap water pressure to provide power, no power consumption.
4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
5
Resistance to strong acid and alkali.
6
Low cost, it fits different kind of filter elements.

Multiple Stages 180mm 50 Micro SS304 Liquid Filtration Machine 1
