DOE SOE 40 60 inch 2um High Flow Filter Cartridges

DOE SOE 40 60 inch 2um High Flow Filter Cartridges

  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
  • DOE SOE 40 60 inch 2um High Flow Filter Cartridges
DOE SOE 40 60 inch 2um High Flow Filter Cartridges
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan/OEM
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 10-49 Pieces
Price: $65.00
Payment Terms: T/T L/C West Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Material: PP/Fiberglass Filter Membrane Material: PP/Fiberglass
Length: 10/20/30/40/50/60 Inch Conector: DOE/SOE/Customized
Micron: 1/3/5/10/25/50/75/100/150 O-ring Material: EPDM/Viton/Silicone/PTFE
Sealing Method: Hot Melting Welding Diameter: 165mm/OEM
Inner Core: PP Selling Units: Single Item
Single Package Size : 155X40X40 Cm Single Gross Weight: 45.000 Kg
High Light:

2um High Flow Filter Cartridges

,

DOE SOE High Flow Filter Cartridges

,

60Inch pp spun cartridge filter

High flow water filter 1/5/10 microns 40 60 inch water filtration cartridge pp for sea RO




Product Name
High flow 1/5/10 microns 40 60 inch water filtration cartridge pp for sea RO water treatment machinery



Filtration media
Polypropylene membrane & Fiberglass membrane


Support material
Polypropylene


Core & Structural components
Polypropylene


 Inner core
Polypropylene


Packing method
Polybag with single box


Filtration precision
1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm


Length
10", 20", 30", 40", 50", 60", Customized


Adaptor
SOE/DOE


Sealing method
Hot melting welding


Sealing gasket & O-ring material
Silicone/EPDM/VITON/PTFE/NBR


Filter cartridge diameter
165mm


Max. working temperature
Pleated polypropylene: 82℃
Pleated fiberglass: 121℃
Melt blown: 65℃


Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;





High flow 1/5/10 microns 40 60 inch water filtration cartridge pp for sea RO water treatment machinery:

The high flow replacement filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Features

All contaminants can be removed within the cartridges because of the flow direction. Up to 110m³/h flow rate per one filter cartridge for water filtration. Max. 50% reduction of filter system. Multi membrane layers for large dirt holding in the high flow filter elements. Thermally bonded construction for stronger pressure resistance. Handle design quick installation, safe and reduce the cost.
Detailed Images

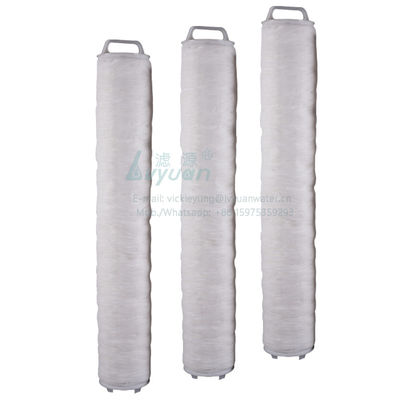

DOE SOE 40 60 inch 2um High Flow Filter Cartridges 0




General Description

The LY-HFPK filter cartridge series is a replacement cartridges for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example.The Lvyuan filter pleated design with high flow area and contamination removal capacity. This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40” length, 2-1/2” diameter filter cartridges. Inner O-ring insures no by pass and handle design makes the installation easier.

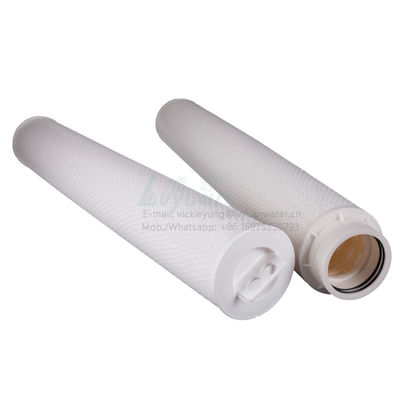

DOE SOE 40 60 inch 2um High Flow Filter Cartridges 1
DOE SOE 40 60 inch 2um High Flow Filter Cartridges 2
