| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan/OEM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | $7.00 - $151.00 / Piece |
| Packaging Details: | Backwash 10/20/40/50/80/125 Micron Stainless Steel Sintered mesh filter element for industrial oil/water filter Single packaging (inner box) |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | Not Available |
| Core Components: | Pressure Vessel, Liquid Filter Element | Usage: | Liquid Filter, Gas, Liquid Filtration |
| Type: | Filter Elements | Material: | Metal Fiber |

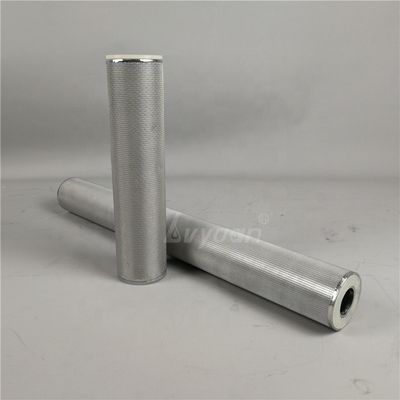

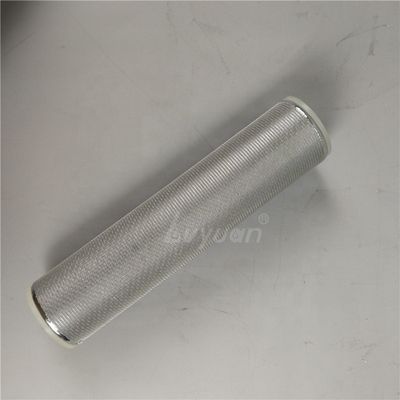

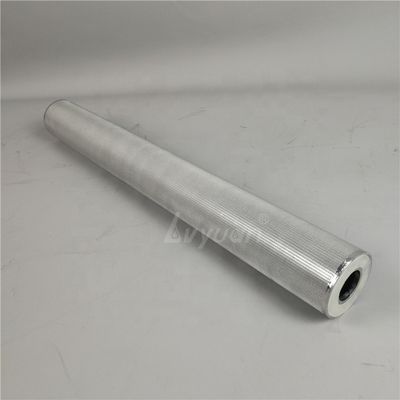

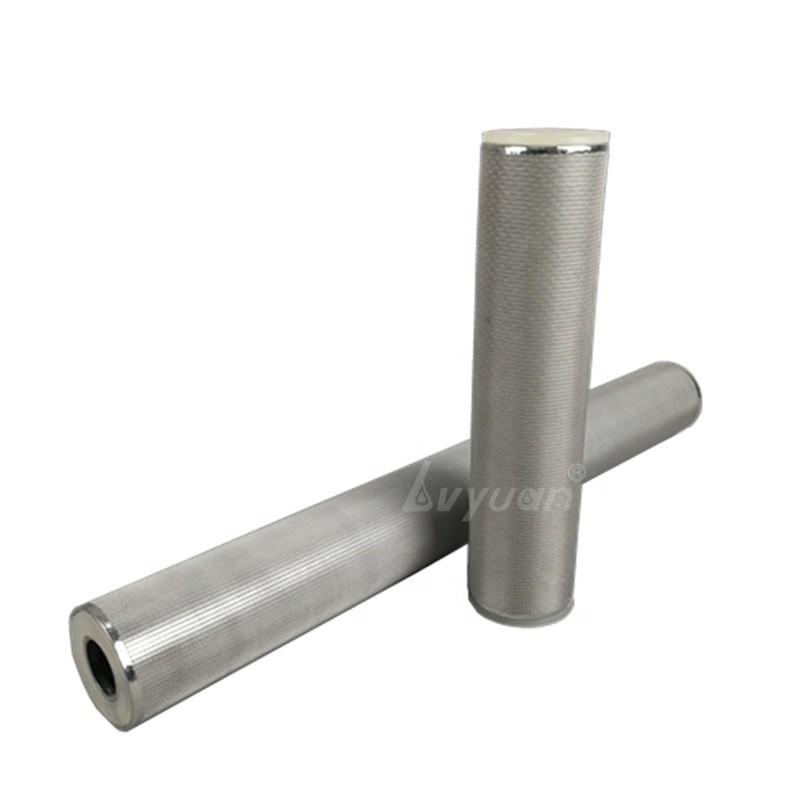

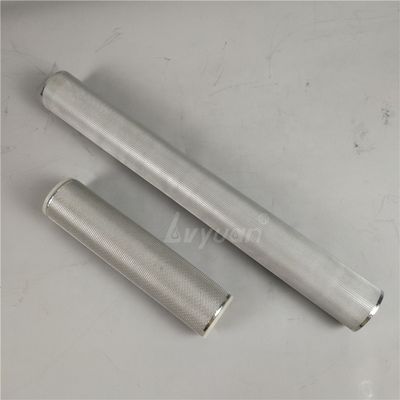

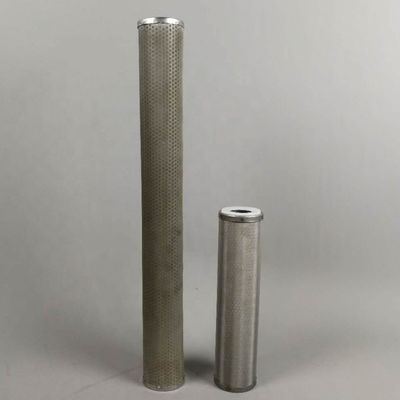

| Product Name: | Sintered Mesh Filter Element | Micron Rate: | 0.1 To 300 Micron |
| OEM Dimension: | Available | Length: | 5", 10", 20", 30", 40", 50'', 60'' Inch |
| Stainless Steel Material: | 304, 316, 316L | Interface Form: | 222,226,215, M36, M24, M22, M20 Thread Interface |
| Layer: | Pleated/mesh Cartridge Filter | Heat Resistence: | - 200 -- 500 Degree |
| Working Pressure: | 0.1 To 30Mpa | ||
| High Light: | 125 Micron Sintered Stainless Steel Filter,70mm Sintered Stainless Steel Filter,50 80 micron sediment filter |
||
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
| Fiter Cartridge dimensions | |
| Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer's request. |
| Material of constructions | |
| Filter media | SUS304, 316, 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
