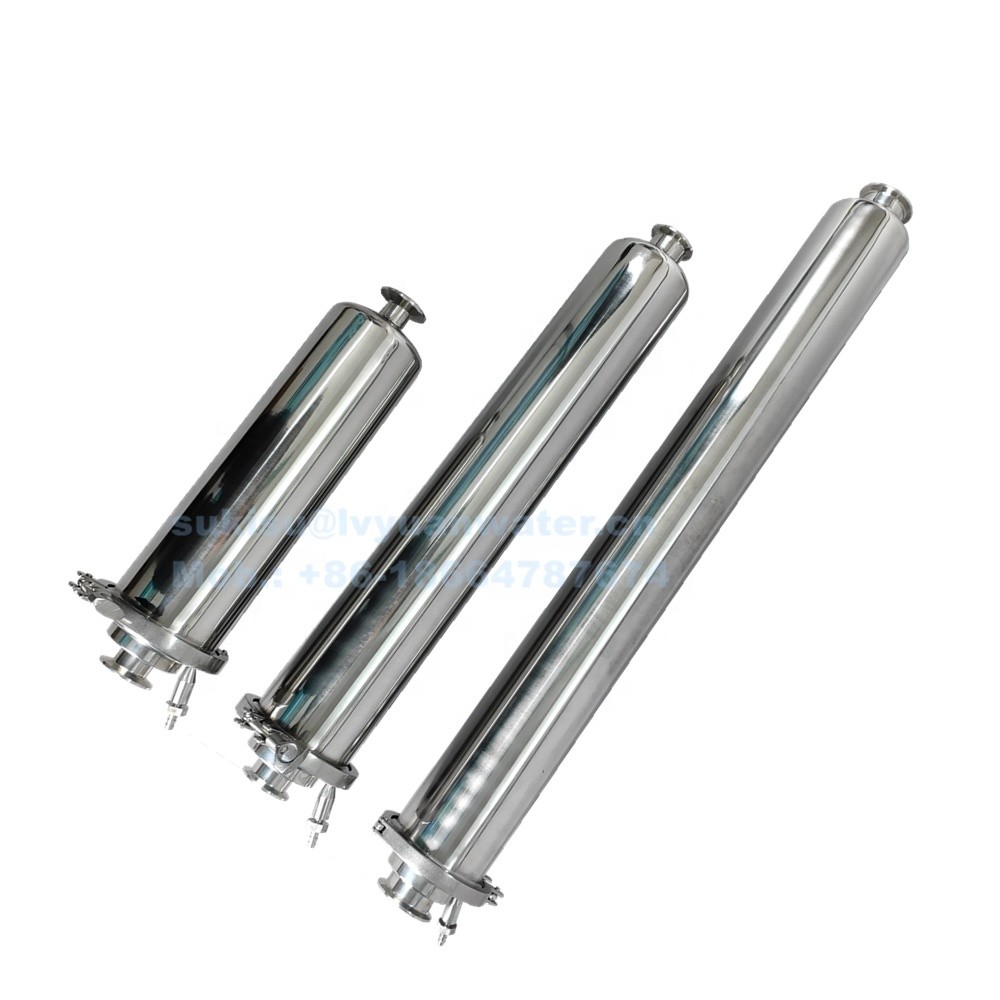

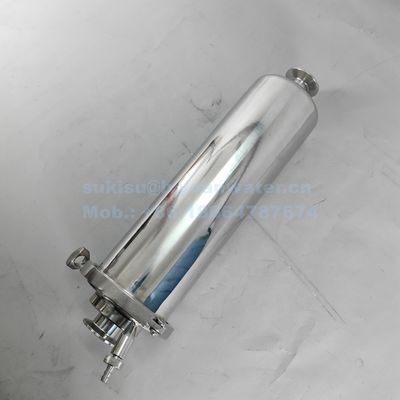

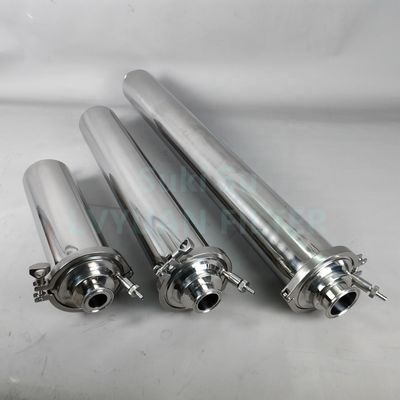

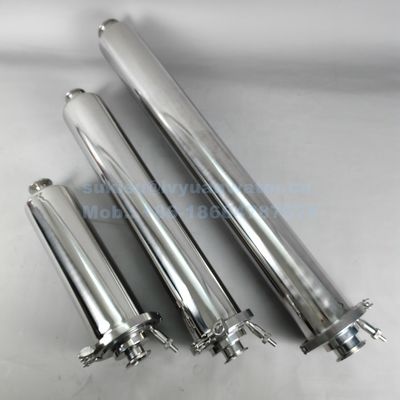

Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing

Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing

  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
  • Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing
Product Details:
Place of Origin: Guangdong, China
Brand Name: Customized
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1-9 Pieces
Price: $85.00
Packaging Details: paper box and wooden case
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Year
Contact Now
Detailed Product Description
Warranty: 1 Year After-sales Service Provided: Online Support
Item Name: Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing Housing Material: SS304/SS316L
Filter Cartridge Length: 10" 20" 30" 40" Cartridge Filters Quantity: Single Core
Surface Treatment: Polished & Sandblast Seal O-ring: Silastic/NBR/EPDM/Viton
Top Cap Installed Type: Clamp Type Connector Type: 222/226/DOE
Inlet & Outlet Type: Internal Thread Packaging Method: Export Standard Box
Selling Units: Single Item Single Package Size : 35X18X25 Cm
Single Gross Weight: 3.000 Kg Package Type: Floor Standing Type Sanitary Grade Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing With 226 Connection Filter Elemen: Packaging: Export Standard Box/As Required
High Light:

89mm Single Water Filter Housing

,

SUS316L sanitary filter housing

,

SUS316L Single Water Filter Housing

Floor standing sanitary grade stainless steel 316L10 20 inch single fluid filter housing
The single fluid filter housing material is 304 stainless steel, using internal and external polishing. It has the characteristics of high pressure resistance up to 8 kg, low cost, small size, large filtering area, fast filtering speed, low clogging rate, acid and alkali corrosion resistance, and long service life.

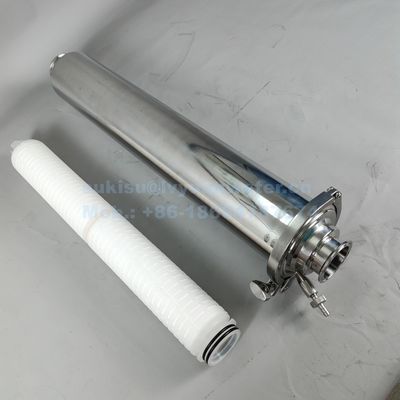

The internal use of different precision filter elements (such as PP filter element, wire wound element, folding filter element, activated carbon filter element and other different specifications and models of filter elements) can remove various tiny particles, colloids, metals, bacteria, residual chlorine and other impurities in the air.

Model No.
Drain
Vent
In & Out
Body diameter
Thickness
LY-FL-SC-L1
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L2
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L3
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L4
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm

Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing 0

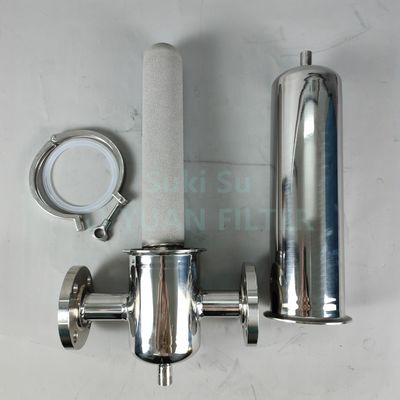

Structure:

Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.

Floor Standing SUS316L Sanitary 89mm Single Water Filter Housing 1
