20Inch Sintered Metal Filter Cartridge

20Inch Sintered Metal Filter Cartridge

  • 20Inch Sintered Metal Filter Cartridge
  • 20Inch Sintered Metal Filter Cartridge
  • 20Inch Sintered Metal Filter Cartridge
  • 20Inch Sintered Metal Filter Cartridge
  • 20Inch Sintered Metal Filter Cartridge
  • 20Inch Sintered Metal Filter Cartridge
20Inch Sintered Metal Filter Cartridge
Product Details:
Place of Origin: Guangdong, China
Brand Name: Lvyuan/OEM
Certification: SGS/CE/ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: >=10 Pieces
Price: $25.00
Packaging Details: High purity SUS304 316L 50 100 microns stainless steel sinter cylinder filter for SS water cartridge filter type housing: Single packaging (inner box)
Payment Terms: T/T L/C West Union
Supply Ability: 500 Piece/Pieces per Day
Contact Now
Detailed Product Description
Core Components: Pressure Vessel Warranty: 1 Year
After-sales Service Provided: Online Support Material: SS304/316L
Length: 10/20/30/40/60 Inch Micron: 1 - 300um
Layers: 5 Layers Interface Form: 222,226,215, M36, M24, M22, M20 Thread Interface
Heat Resistance: - 200 -- 500 Degree Working Pressure: 0.1 - 30Mpa
Size: Customized
High Light:

20Inch Sintered Metal Filter Cartridge


30Mpa Sintered Metal Filter Cartridge


Lvyuan Sintered Metal Filter Cartridge

20 inch sintered metal powder oil filter 5 micron oil filter cartridge


20Inch Sintered Metal Filter Cartridge 0



Power sintered filter series ---


The stainless powder sintered filter is made by using molding of stainless powder through high temperature

sintering, also it adopts unique technology and strictly control production technique(inc. Powder grain

distribution, molding and sintering). The filter is characterized by high machinery strehgth, high temperature and corrosion resistance, uniform aperture distribution, fine permeability, weldable and machinery processing. The powder grain size and technique conditions can be adjusted so as to produce the porous metal sintered filter with wider precision scope. Based on the advantages of porous metal powder sintered material, the product has been widely used for the gas liquid filtration and separation in the fields of catalyst recovery, chemical industry, medicine, beverage, food, metallurgy, petroleum, environmental protection, fermentation, etc.,

including the rough and fine filtration of liquor, oil, beverage, mineral water, the dedusting, degerming and

deoiling mist of various gas and steam; sound insulation, flame resistance, gas absorbing, etc.


1.Stable shape, high shock resistant and alternating load capacity are superior to other metal filtration


2. Stable permeability and separation effect;

3.Excellent machineray strength, applicable to the high temperature, high pressure and strong corrosivity;

4.Especially applicable to the hot gas filtration;

5.It can be manufactured as different products with different shapes and precisions,

also can be matched with various interfaces via welding process.

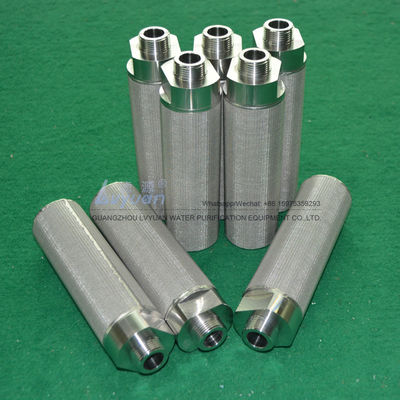

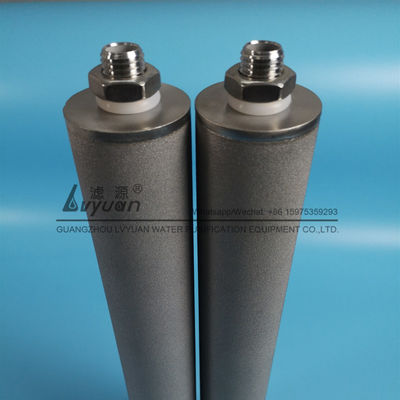

20Inch Sintered Metal Filter Cartridge 1      20Inch Sintered Metal Filter Cartridge 2



Sintered mesh filter series ----


Main material of the sintered mesh filter adopts standard five-layer sintered mesh,

which is made by using special process of lamination molding and vacuum sintering on five-layer

stainless wire cloth. The filter is characterized by strong corrosion resistance, fine penetrability, high strength,

easy washing and back washing, accurate filtration precision, clean filter material, solid mesh, etc.

Main connection modes are standard interface (such as 222, 220 and 226), fast interface connection, thread,

flange and pushing rod connection, special custom interface. The material has widely applied for the filtration

of polyester,water treatment, oil product, pharmacy, foods and beverage, chemical industry, chemical fiber

products and high-temperature air medium.


1.The standard five-layer mesh is composed of protective layer, precision control layer, dispersion layer,

two strengthening layers.

 2.High intensity: as the five-layer wire mesh is sintered, it is characterized by extremely high machinery

strength and compressive strength.

3. High precision: It can realize uniform surface filtration for the material with 2-200um filtration granularit.

4. Heat resistance: It can be applied for the continuous filtration under -200  ~ 500 degree centigrade.

5.Washing performance: The surface filtration structure with fine back washing effect, the washing course

is simple.

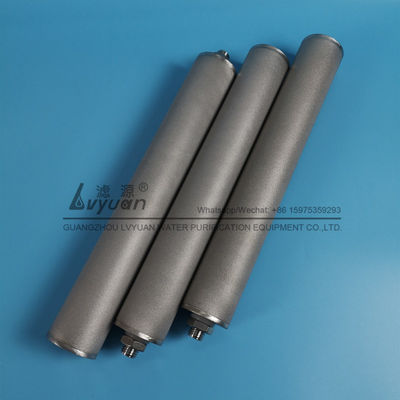

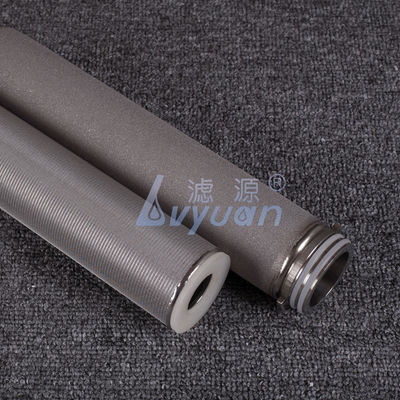

        20Inch Sintered Metal Filter Cartridge 3  20Inch Sintered Metal Filter Cartridge 4


Melt filter series ---


The melt filter is a folded stainless, whose main material adopts stainless fiber sintered felt and stainless wire

cloth. The melt filter of sintered felt possesses such advantages as high porosity, large filtration area, strong

discharge capacity, repeatability, stable shape, high shock resistant and alternating load capacity superior to

other metal filtration materials.

The melt filter of stainless wire cloth is characterized by high intensity, non-dropping ,easy cleaning, high

temperature resistance, beneficial application, etc. The appliance scope: it is mainly used for the filtration

of high polymer, drug, hydraulic oil, water treatment and high temperature air.


1.The melt filter is characterized by high porosity, fine permeability, small resistance,

low operation differential pressure;

2.The folded filter will realize large filtration area and much more discharge capacity;

3.High temperature and corrosion resistace, it is applicable to the high thick liquid filtration;

4.Complete stainless steel structure, strong chemical compatibility.



Main technical parameters:

1. Maximum operating temperature of filter: ≤500 degree centigrade.

2.Filtration precision: 1 - 200um;

3.Filtration precision: 1 - 200um;

4.Filter specification: 5 - 40 inches (it can be fabricated according to clients’ requirements);

5.Filter specification: 5 - 40 inches (it can be fabricated according to clients’ requirements);

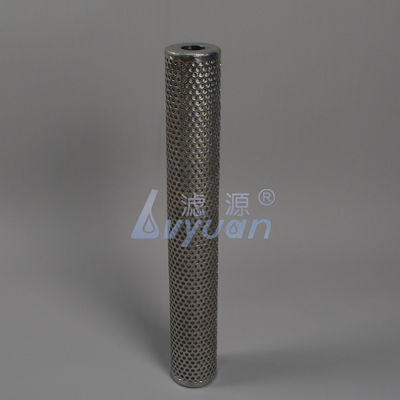

20Inch Sintered Metal Filter Cartridge 5
