Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine

Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine

  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
  • Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine
Product Details:
Brand Name: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1-4 Units
Price: $2,850.00
Contact Now
Detailed Product Description
Material: Customized, SS304 / SS316L Warranty: 1 Year
Filter Bag Material: PE BAG/PP BAG Bag Filter Quantity: Single Bag Filter Housing
Surface Treatment: Polished & Sandblast Seal O-ring: Silastic/NBR/EPDM/Viton
Top Cap Installed Type: Clamp Type/Bolt Type Inlet & Outlet Type: Internal Thread/Flange
Connector Type: 222/226/DOE Packaging Method: Export Standard Box
Selling Units: Single Item Single Package Size : 75X50X75 Cm
Single Gross Weight: 30.000 Kg
High Light:

SS3316L Liquid Filtration Machine

,

100psi Liquid Filtration Machine

,

100psi bag filter vessel

Big flow rate SS304 316L stainless steel pump filter system oil filter machine for fuel diesel system


High pressure air pneumatic diaphragm pump 1/2/3/4 stage removable stainless steel bag filter machine for diesel oil industry. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a metal netting, to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified oil into the filtration device.The filter device is a small manual compression plate and frame filter press, using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities trapped in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter paper.The filtration pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter paper surface, the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is close to saturation state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.This kind of oil filter machine can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and lubricating oil refining.



Product name
SS304 316L stainless steel pump filter system oil filter machine
Raw material SUS304, SUS316L
Filter stage 1/2/3/4/5/6/7/8 stage, or customized.
Filter elements type Filter cartridges, Filter bags.
Inlet & Outlet Flange/Thread/Customized
Filtration microns 1 microns to 100 microns available.
Liquid flow type Side Entry; Top Entry.
Seal material EPDM/Silicone/Viton/PTFE
Surface treatment Polished/Sandblast
Working temperature 0.5℉ to 380℉
Min./Max. 100psi to 235psi
working pressure
Housing design pressure 0.1-2.0Mpa
Pump Air/liquid pump, booster pump, wheel pump, air pump, pneumatic pump, etc.
Production time 7 ~ 15 working days
Movable cart type
The configurations only for reference, it is depended on different customers' requirement.
filter machine spec. 1.SS filter housing
  2.Discharge valve
  3.Combination valve
  4.Pressure gauge
  5.Pump
  6.Motor
  7.Rough filter
  8.Magnetic filter
  9.In-line filter
  10.Flow gauge
  11.Electrical apparatus & elements







FEATURE


1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
2
Working pressure 8kg/0.8Mpa is supported.
3
Use the tap water pressure to provide power, no power consumption.
4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
5
Resistance to strong acid and alkali.
6
Low cost, it fits different kind of filter elements.





Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine 0

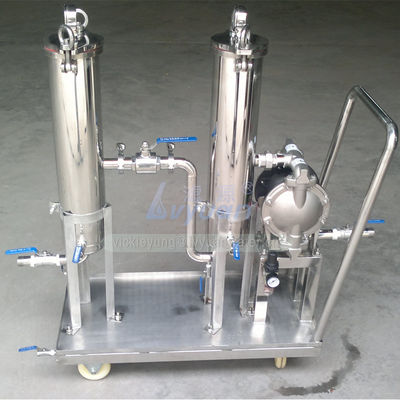

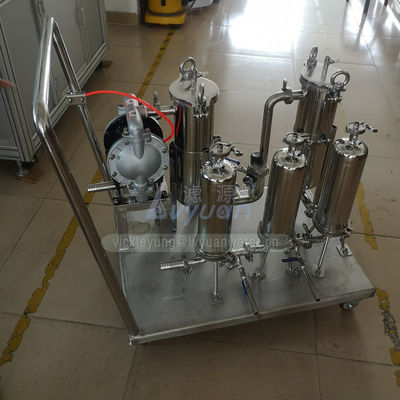

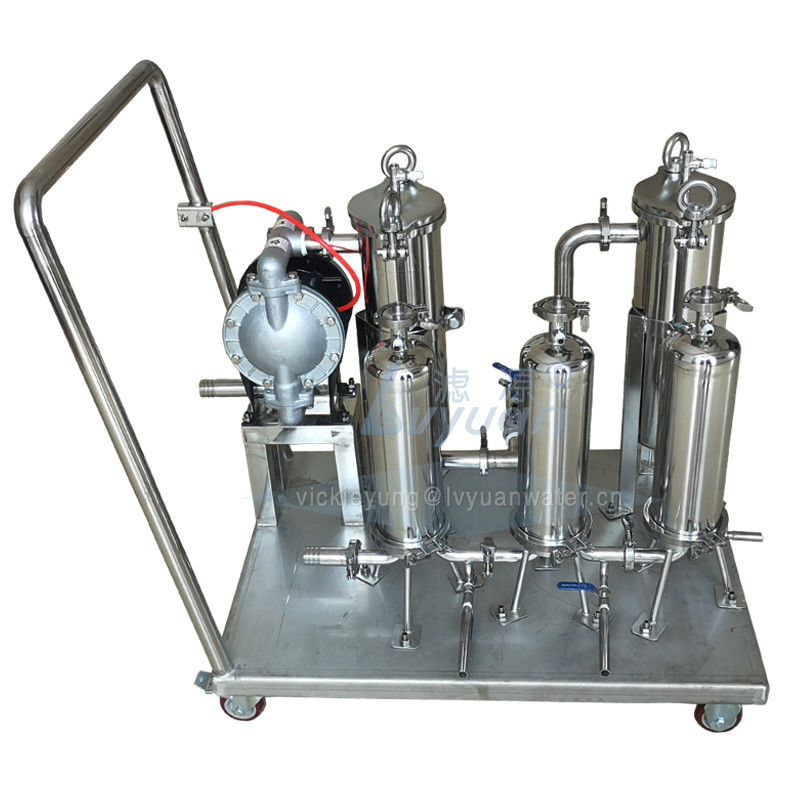

Stainless steel dual filtration system.
Movable filter is composed of prefilter,
oil pump and filtration unit. High pressure
resistant and high precision.

Fuel Diesel 100psi Stainless Steel SS3316L Liquid Filtration Machine 1



Application

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.
