|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||10 Piece/Pieces|
|Price:||$2.80 - $130.00 / Piece|
|Packaging Details:||paper box|
|Payment Terms:||T/T L/C West Union|
|Supply Ability:||500 Piece/Pieces per Day|
|Feature:||Increased The Filtration Area||Length:||10/20/30/40 Inch Or Customized|
|Other Name:||Membrane Filter Cartridge||O Ring:||Slicone, EPDM, Viton, Etc|
|Micron Rate:||0.1/0.22/0.45/0.65/1/3/5/10/30/50/60 Um||After-sales Service Provided:||Online Support|
115mm Pleated Polypropylene Filter Cartridge,
ISO9001 Pleated Filter Cartridge,
50um Pleated Filter Cartridge

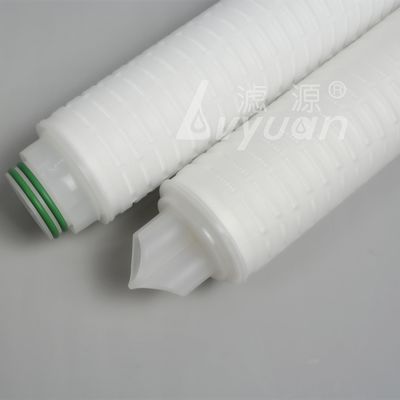

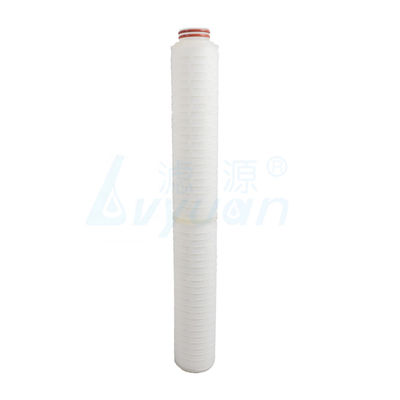

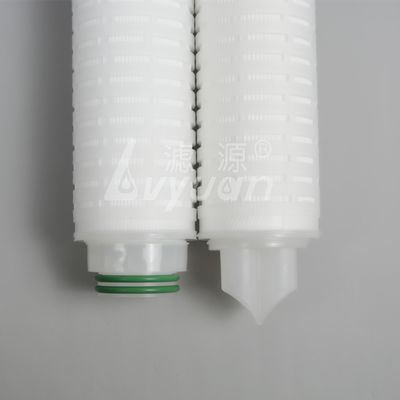

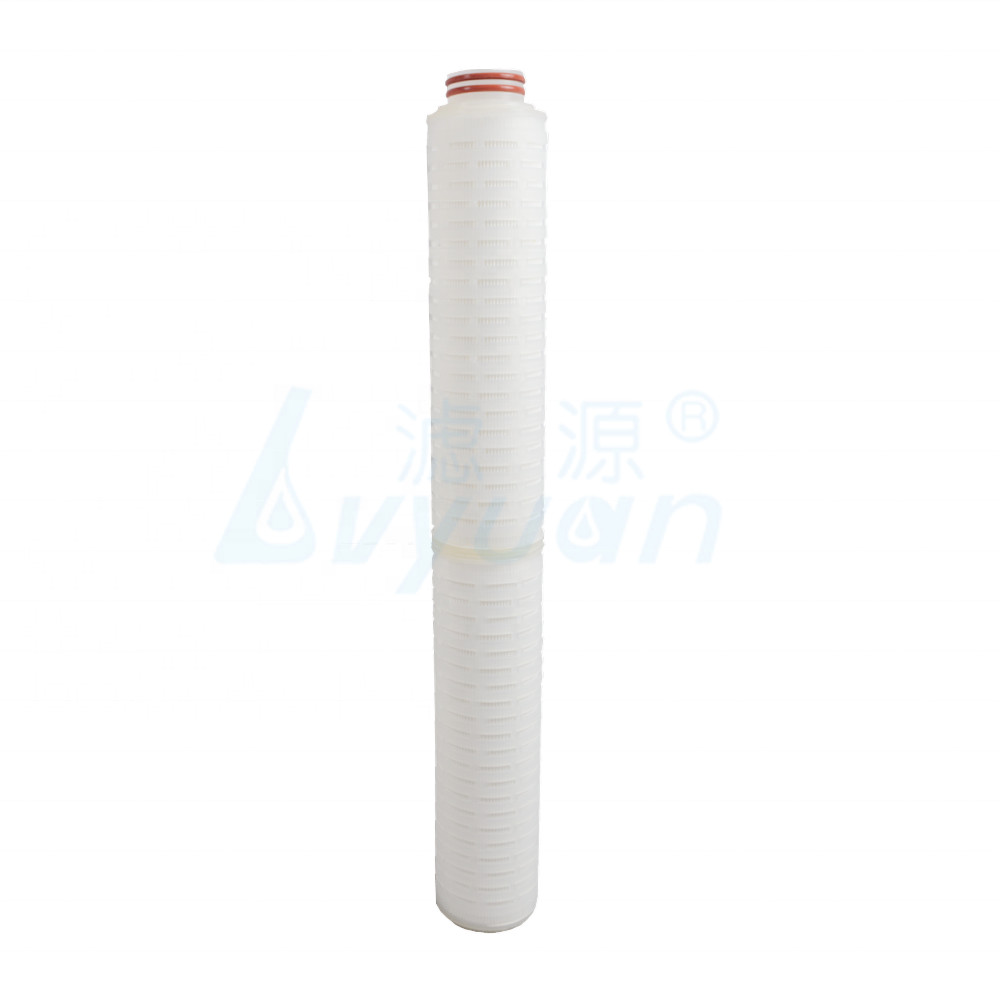

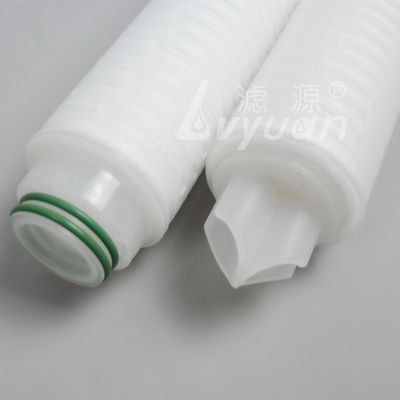

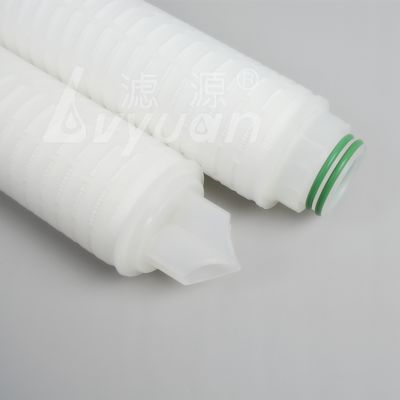

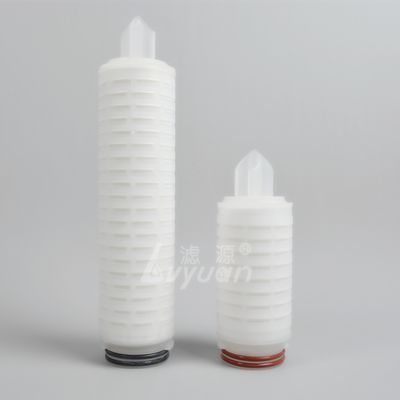

Pp pleated filter cartridge deliver high effciency and consistent filtration of fluids in the food and beverage industry. They are constructed of pleated membrane filter media that provides removal of partical from 0.1 to 60 micron, the pore size is not affected by the vibration of feeding pressure, due to its uique low differential pressure, high flow volume, excellent filtration microns.
1. Excellent chemical compatibility, suitable for filtering organic solvent, acid bases.
2. Large flow volume, low diffential pressure and long service life.
3. Pleated design increased the filtration area for deep filtration.
4. Pleated media with high dirt holding capacity
5. Full range of removal microns ratings.
6. Multiple adaptor options, Easy installation into sanitary housings
Adaptor: pp with internal stainless steel reinforcing ring.
Accept customized code, as you can provide the picture.
Accept customized length, as you can provide the specification.
|Product Name||Paper Pleated Fliter cartridge|
|Outer diameter||68mm, 115mm|
|Length||9.75'', 9.87'', 10'', 20'', 30'', 40''|
|Removal rate||1um, 5um, 10um, 20um, 50um|
|Maxium Operatiing Temperature||37.8ºC|
|Maxium Operating Pressure||4.0 bar|
