|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 Unit|
|Price:||$80.00 / Unit|
|Packaging Details:||paper box and wooden case|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||5000 Piece/Pieces per Year|
|Material:||Customized, SS304 / SS316L||Filter Cartridge Length:||10" 20" 30" 40"|
|Cartridge Filters Quantity:||Single Core||Surface Treatment:||Polished & Sandblast|

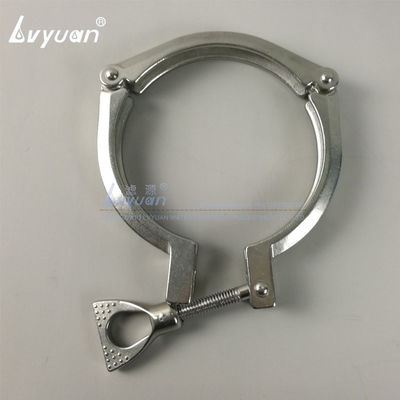

|Seal O-ring:||Silastic/NBR/EPDM/Viton||Top Cap Installed Type:||Clamp Type|

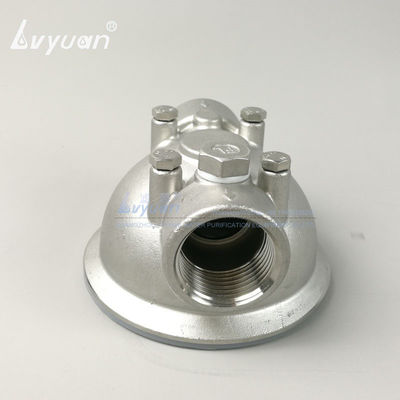

|Inlet & Outlet Type:||Internal Thread||Connector Type:||222/226/DOE|
|Selling Units:||Single Item|

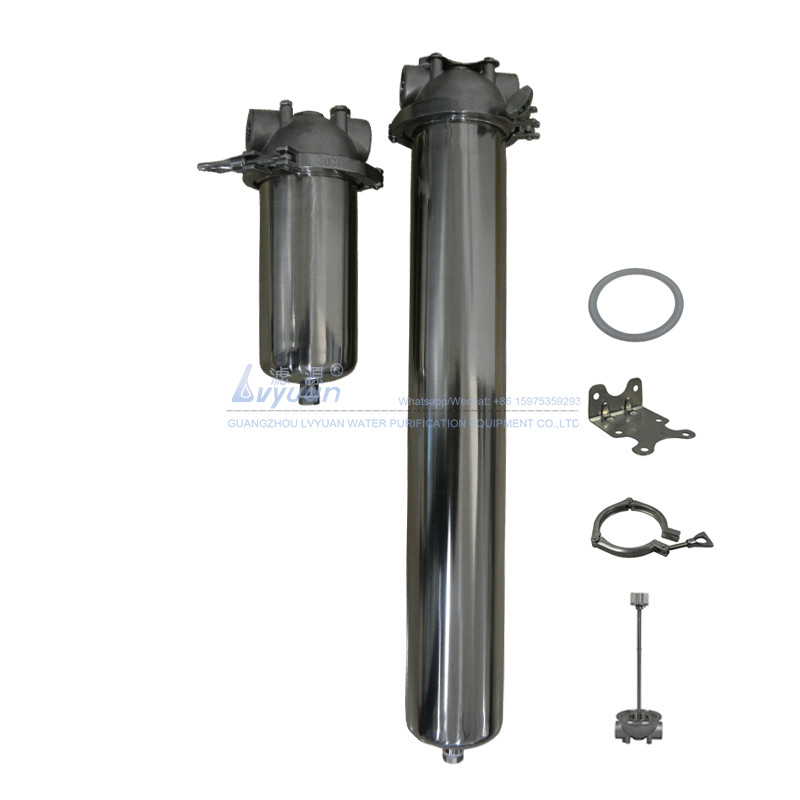

Cartridge Filter Housing SS316,
UF RO Cartridge Filter Housing,
30" Cartridge Filter Housing SS316
1. Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
3. Use the tap water pressure to provide power, no power consumption.
4. Wall-mounted, counter-top, very simple installation.
5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
6. Resistance to strong acid and alkali.
7. Low cost, it fits different kind of filter elements.

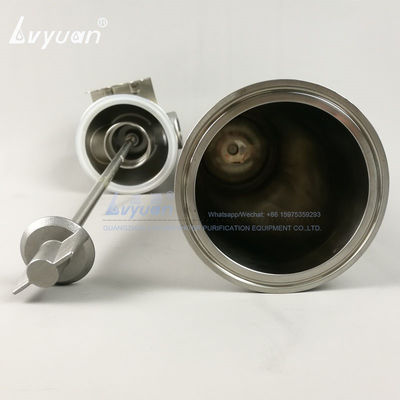

Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.
1. Widely used in UF, RO, EDI security filtration and the end-filtration.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
