| Place of Origin: | Guangdong, China |
| Brand Name: | Lvyuan,OEM,ODM |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1-9 Boxes |
|---|---|
| Price: | $22.00 |
| Payment Terms: | T/T L/C West Union |
| Supply Ability: | 500 Piece/Pieces per Day |
| Material: | Pp | Size: | 508*63*63mm |
|---|---|---|---|
| Warranty: | Unavailable | Feature: | High Efficiency |
| Length: | 20 Inch | Removal Rate: | 1 Micron 5 Micron |
| Usage: | Water Treatment | Application: | Industry |
| Color: | White | Packing: | Paper Box |
| Raw Material: | Pp Fiber | Appearance: | Glossy |
| After-sales Service Provided: | Online Support | Selling Units: | Single Item |
| Single Package Size : | 53X34X33 Cm | Single Gross Weight: | 5.800 Kg |
| High Light: | 20um PP Spun Sediment Filter,80% PP Spun Sediment Filter,20um poly spun filter cartridge |
||

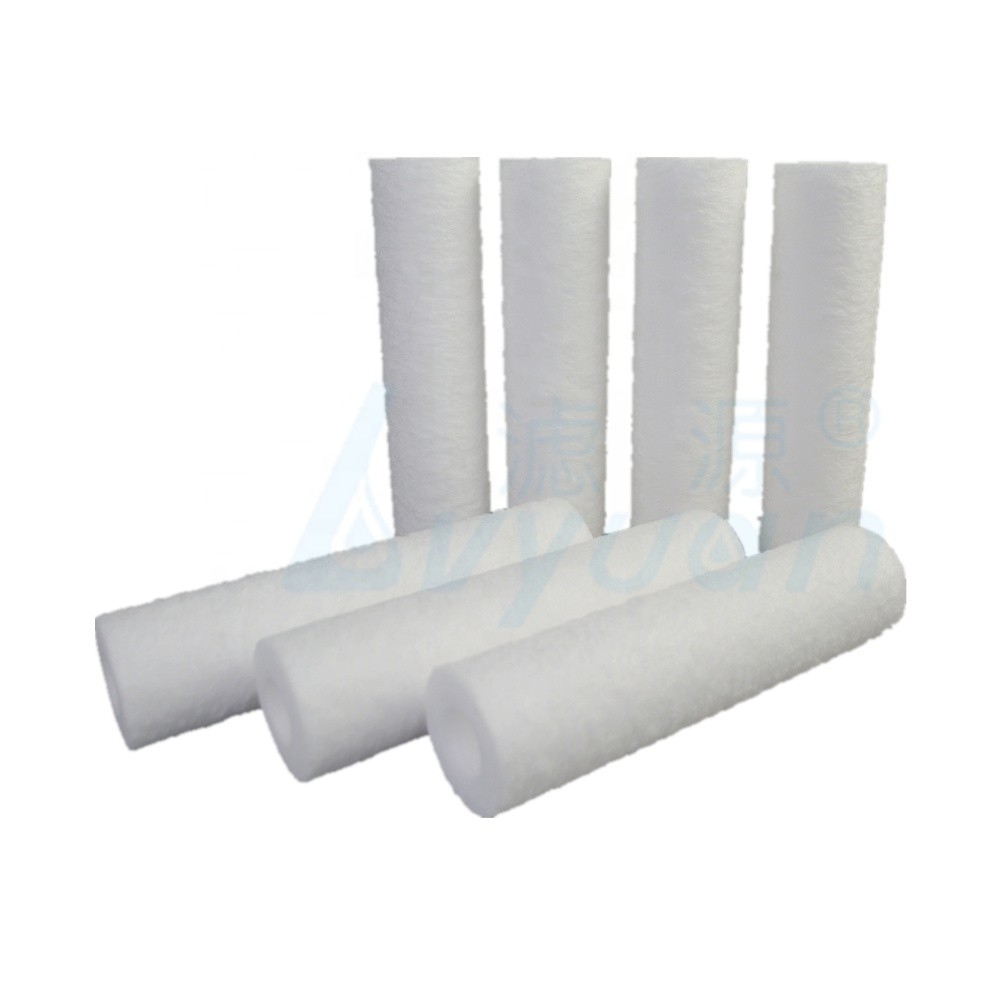

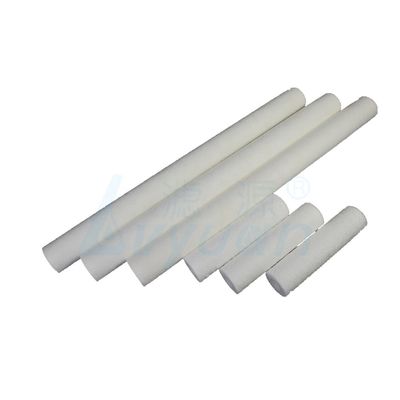

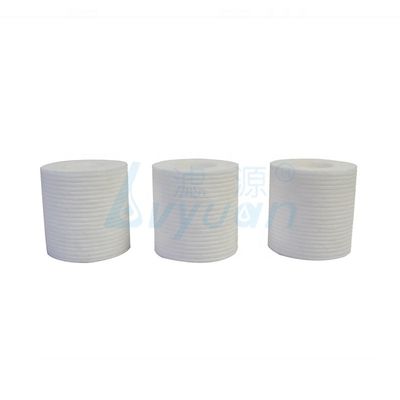

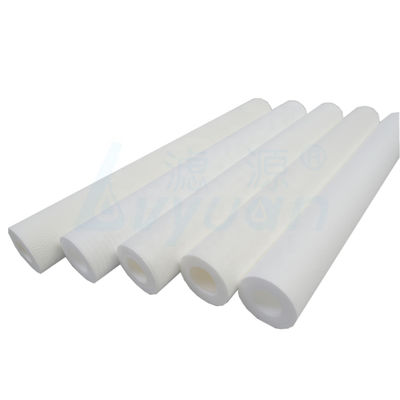

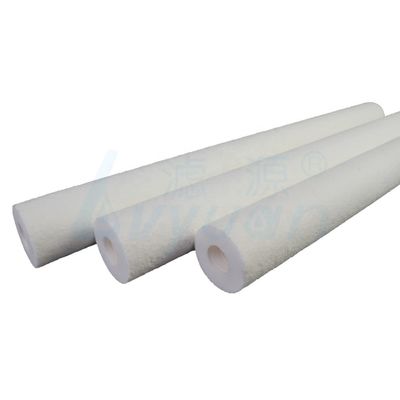

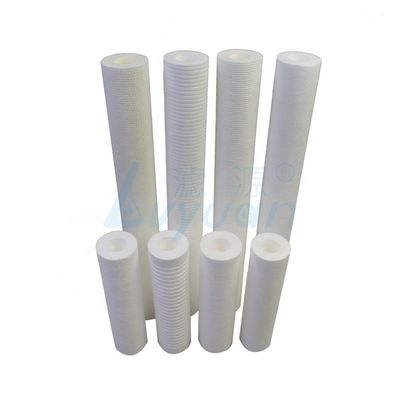

PP Cartridge Filter is made of melted 100%. food grade polyproylene. Comparing with PP string filter cartridge, it has better chemical durability and longer service life, Various different lengths and sizes are available for your usage.
The PP filter cartridge which is made of polypropylene can remove the particles,impurities and dust in the water. This cartridge usually works as the previous cartridge to protect the behind filtration for water treatment system.
PP filter cartridge should be changed every six monthes or sooner if bad taste or odor return.
The filter should not be used where the water is micro biologically unsafe or with water of unknown quality without adequate disnfection before or after the filter .
Lvyuan 20 inch flat pp melt blown filter specification:
| Technical data | Filter Media | PP |
| Inner core | PP or stainless steel | |
| O-rings/ Gaskets(only for 222,226,DOE) | Silicone/Nitrile/EPDM/Viton | |
| Micron Rating | 1.0, 5.0, 10, 20um | |
| Normal Operating Temperature | PP : <80℃ (176 ℉ ) at P≤1.0 bar (14.5psi) | |
| Max. Operating Temperature | <80℃ (176 oF) | |
| flow pressure | PP: 4.0 bar(58psi) at 25℃ (77℉ ) | |
| Filtration efficiency | ≥ 80% | |
| Sterilization | Not recommended | |
| Cartridge Size | Outer Diameter | Φ 63(2.5'')/114(4.5) mm |
| Inner Diameter | Φ 28mm (1.10") | |
| Filtration area(m2) | 0.4 /10'' | |
| Length(based on DOE end cap) | 10’’, 20’’, 30’’, 40’’, 50'', 60'', 70'' | |
| pH | 1-3 |
Features:
1. High dirt-holding capacity and long service life.
2. Customized size & logo steel seal.
3. Wouldn't cause any fiber fall off.
1. RO water pre treatment in municipal tap water
2. Industry water, plating filtration
3. Food and beverage
4. Sterile water and ultra pure water pre filtration
5. Chemical and solvent water
1. 10 years professional manufacturer experience.
2. We provide OEM and ODM customization service, you can find all kinds of water filter cartridges and filter housing in our company.
3. All products have quality warranty.Our Certification: CE ISO SGS
4. Our workers are efficient and our sales are professional, we will give the terrific customized service.
5. Our products are exporting to more than 100 countries and regions. Received a good reputation.
6. Many cooperator stand by us for many years.
7. We are determined to provide the best service and good quality to our global customers, we will be more and more professional company in the future.
We built a long-term relationship with our customers and earn a good reputation from our customers. Providing the best service as we can.
1. Accept customized length, Package, logo etc, As you offer your drawing and picture.
2. Accept Sample purchases order, accept MOQ=10.
3. We will respond within 24 hours.
4. Received the payment, We will contact you at the first time and arrange the production and let you know the latest process.
5. Any doubt, pl contact with us, We will help you solve the problem asap.
