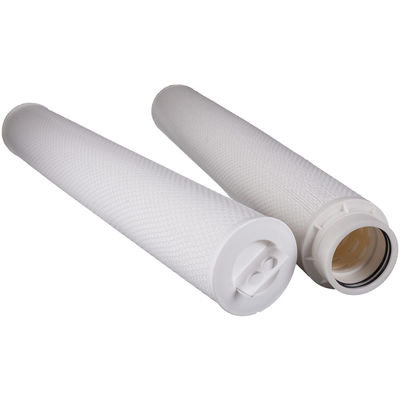

20" Micron Cartridge Filters Desalination Ro Seawater Membrane Elements

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Lvyuan / OEM
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Price:	$18.00 - $101.00 / Piece
Packaging Details:	Industrial Pleated Cartridge Filter High Flow Filter Cartridge for R.O water purification system 1. Outside packing: Thick Carton 2. Inside packing: Poly Bag
Supply Ability:	5000 Piece/Pieces per Week high flow filter

Contact Now

Detailed Product Description

Machinery Test Report:	Not Available	Marketing Type:	Ordinary Product
Warranty Of Core Components:	Not Available	Material:	Carton
Weight:	Depends	Size:	Depends
Warranty:	Unavailable	Product Name:	Seawater Membrane Elements
Micron Rate:	1, 5, 10 To 100 Micron	Length:	20", 40", 60'' Inch
Filter Medium:	PP, Melt Blown PP, Cellulose	Code / End Cap:	Glass Fiber Reinforced Polypropylene
Usage:	Liquid Filter Elements, Water Filter Parts	Inner Core:	PP Or Glass Fiber
Diameter:	6'', 152mm / 6.5'', 165mm	Replacement:	P/ALL PARK/ER 3/M
Core Components:	Liquid Cartridge Filters
High Light:	20" Micron Cartridge Filters , Seawater Desalination Micron Cartridge Filters , Ro Seawater Membrane Elements

Sea water desalination ro membrane Seawater Membrane Elements

Seawater desalination uses reverse osmosis membrane, which is a kind of membrane without pores, also called semi-permeable membrane. It is not the principle of screening, but the principle of reverse osmosis. A membrane that is selective to the substance that passes through is called a semi-permeable membrane. Generally, the dilute solution and the concentrated solution of the same volume should be placed between each other in a container with a semi-permeable membrane in the middle. The solvent in the dilute solution will naturally pass through the semi-permeable membrane and flow to the side of the concentrated solution.

The liquid level on the solution side will be higher than the liquid level of the dilute solution by a certain height, forming a pressure difference and reaching a state of osmotic equilibrium, so that the pressure difference is the osmotic pressure. The size of the osmotic pressure depends on the type of the concentrate, and the concentration and temperature have nothing to do with the properties of the semipermeable membrane. The flow direction of the solvent is opposite to the original permeation direction. This process is called reverse osmosis.

The reverse osmosis membrane used for seawater desalination can intercept cations such as calcium, magnesium and sodium, and impurities such as chloride and sulfate in the seawater, allowing the water to pass through. It adopts cross-flow filtration, and the wider flow channel guarantees its pollution resistance performance. However, it is still necessary to periodically regenerate the membrane with a special cleaning agent.

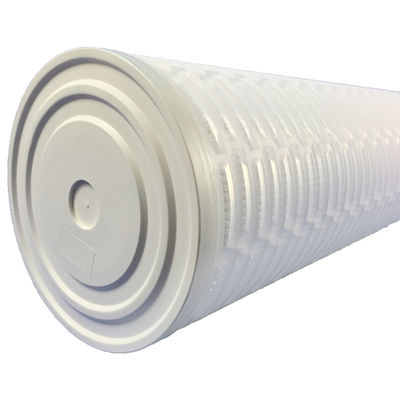

High flow 3/M replacement filter

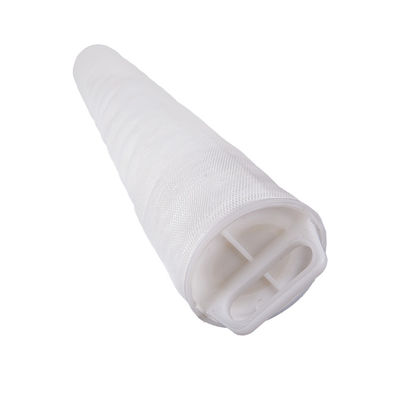

High flow 3/M replacement filter

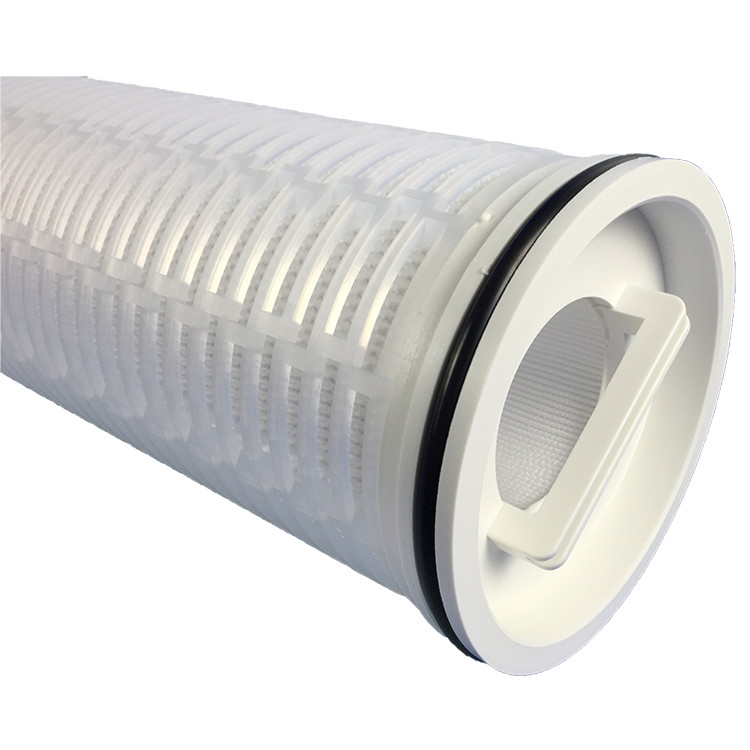

High flow Park/er replacement filter

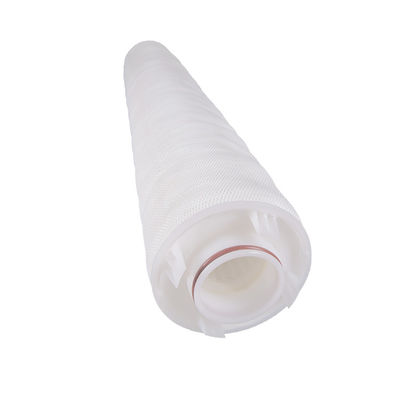

High flow P/all replacement filter

Specification

Replacement	P/all	Park/er	3/M
Length	20", 40'', 60''	40''	20", 40'', 60''
Micron Rate	1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm	1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm	1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
Filter Medium	Polypropylene, Cellulose, Melt Blown PP	Polypropylene, Cellulose, Melt Blown PP	Polypropylene, Cellulose, Melt Blown PP
Support	Polypropylene	Polypropylene	Polypropylene
End Cap	Glass Fiber Reinforced Polypropylene	Glass Fiber Reinforced Polypropylene	Glass Fiber Reinforced Polypropylene
Outer Diameter	6'', 152mm	6'', 152mm	6'', 152mm / 6.5'', 165mm
Gasket/O ring material	EPDM/NBR/Viton	EPDM/NBR/Viton	EPDM/NBR/Viton
Max. Operating Differential Pressure	PP: 3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F	PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F	PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
Suggestion Flow	20" 660LPM 40" 1300LPM 60" 1900LPM	40" 1300LPM	20" 660LPM 40" 1300LPM 60" 1900LPM

Our Company

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is located in Panyu District, Guangzhou city. We're a comprehensive enterprise. Our competitive production lines including:
1. All kinds of filter Cartridges
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Many kinds of Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers.
