| Place of Origin: | Guangdong, China |
| Brand Name: | Customized |
| Certification: | SGS/CE/ISO 9001 |
| Minimum Order Quantity: | 1-9 Units |
|---|---|
| Price: | $85.00 |
| Packaging Details: | paper box and wooden case |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Year |
| Item Name: | Stainless Steel 316L 10/20 Inch Single Fluid Filter Housing | Housing Material: | SS304/SS316L |
|---|---|---|---|
| Filter Cartridge Length: | 10" 20" 30" 40" | Cartridge Filters Quantity: | Single Core |
| Surface Treatment: | Polished & Sandblast | Seal O-ring: | Silastic/NBR/EPDM/Viton |
| Top Cap Installed Type: | Clamp Type | Connector Type: | 222/226/DOE |
| Inlet & Outlet Type: | Internal Thread | Packaging Method: | Export Standard Box |
| High Light: | 0.1um Single Cartridge Filter Housing,SS316 Single Cartridge Filter Housing,SGS industrial cartridge filter housings |
||

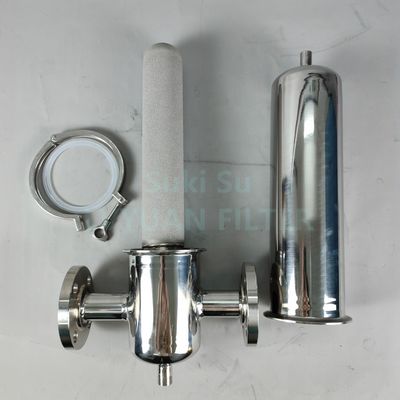

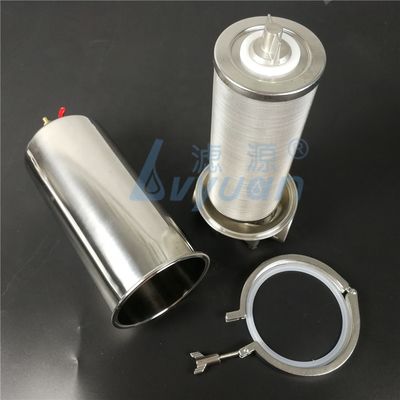

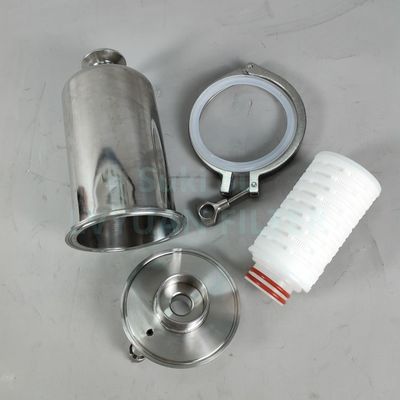

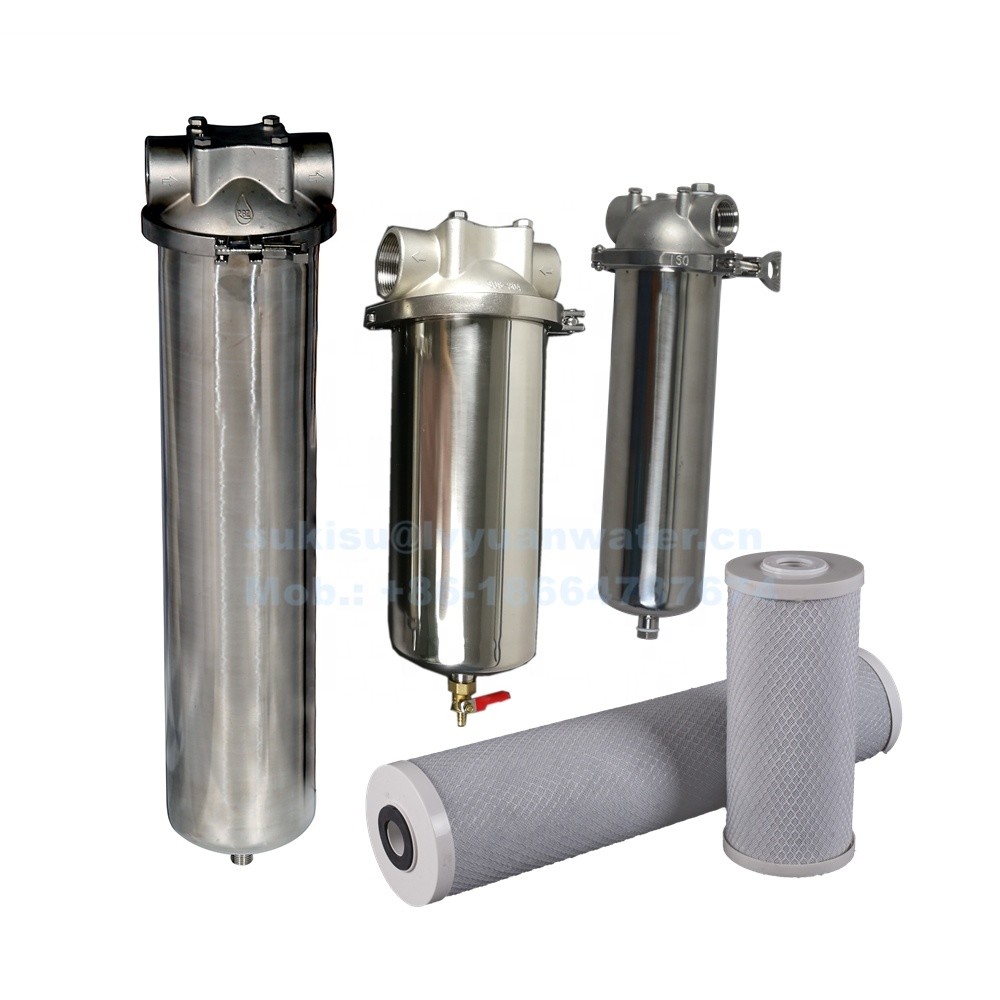

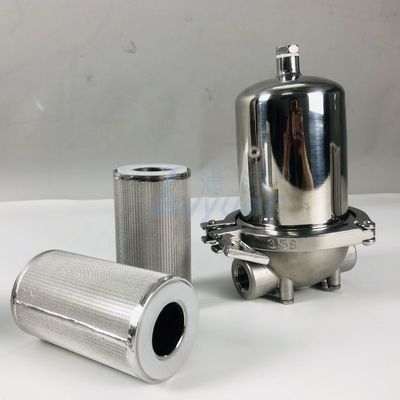

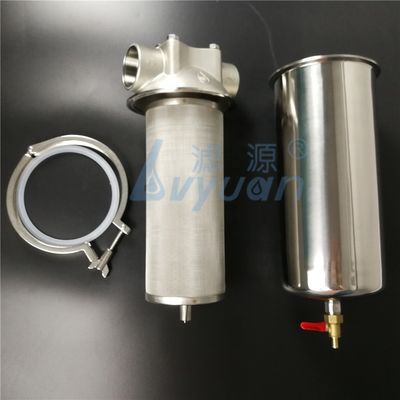

Industrial pipeline SS304 316 stainless steel cartridge filter housing
Structure:
Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.
Features:
1. Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
3. Use the tap water pressure to provide power, no power consumption.
4. Wall-mounted, counter-top, very simple installation.
5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
6. Resistance to strong acid and alkali.
7. Low cost, it fits different kind of filter elements.
|
Model No.
|
Drain
|
Vent
|
In & Out
|
Body diameter
|
Thickness
|
|
LY-FL-SC-L1
|
1/4"
|
1/4"
|
1/2" 3/4" 1"
|
89mm
|
1mm-2mm
|
|
LY-FL-SC-L2
|
1/4"
|
1/4"
|
1/2" 3/4" 1"
|
89mm
|
1mm-2mm
|
|
LY-FL-SC-L3
|
1/4"
|
1/4"
|
1/2" 3/4" 1"
|
89mm
|
1mm-2mm
|
|
LY-FL-SC-L4
|
1/4"
|
1/4"
|
1/2" 3/4" 1"
|
89mm
|
1mm-2mm
|
FAQ:
1) Do you have a minimum quantity of the products?
No,we will build business with you with even 1 pc. We believe this cooperation will be a long- term relationship
for our high quality, competitive price.
2) Can you print our Logo on the products.
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.
