Place of Origin: | Guangdong, China |
Brand Name: | Lvyuan/OEM |
Certification: | SGS/CE/ISO 9001 |
Minimum Order Quantity: | 1 Piece/Pieces |
---|---|
Price: | $30.50 - $220.00 / Piece |
Packaging Details: | paper box |
Payment Terms: | T/T L/C West Union |
Supply Ability: | 500 Piece/Pieces per Day |
After Warranty Service: | Online Support | Local Service Location: | None |
---|---|---|---|
Showroom Location: | None | Video Outgoing-inspection: | Provided |
Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel |
After-sales Service Provided: | Online Support | Feature: | Good Permeablity |
Length: | 10/20/30/40 Inch Or Customized | Material: | Stainless Steel Mesh |
Shape: | Cylinder | Usage: | Water Treatment |
Application: | Industry | Color: | Sliver |
Packing: | Paper Box | Removal Rate: | 2 To200μm |
Advantage: | Reuse | ||
High Light: | 2um SS Pleated Filter Cartridge,222 thread SS Pleated Filter Cartridge,226 Thread pleated filter element |

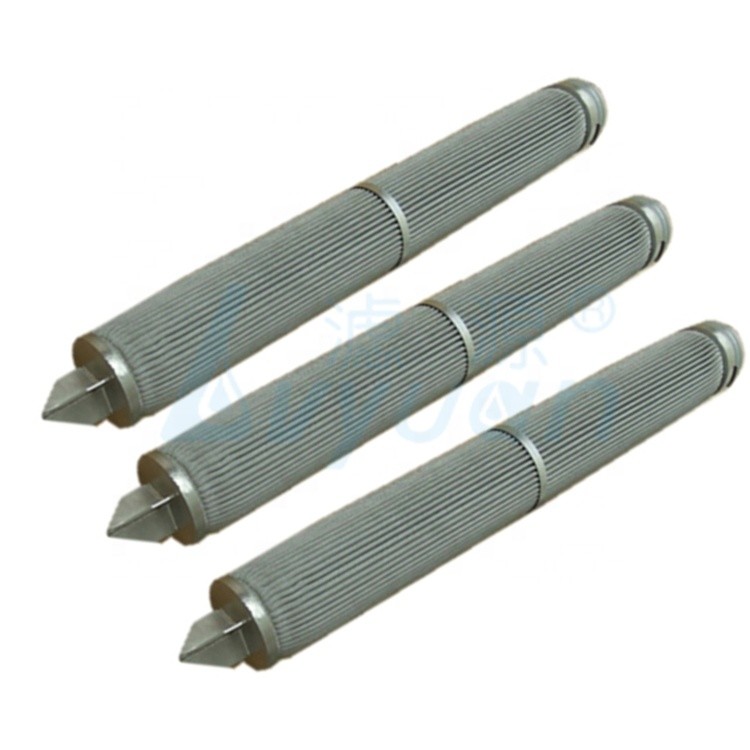

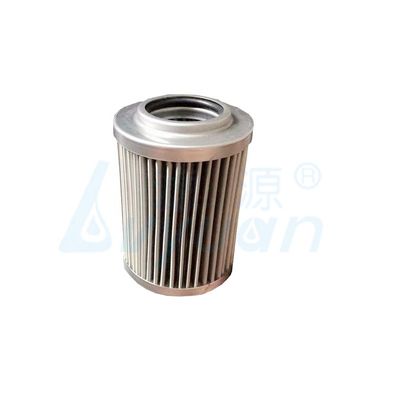

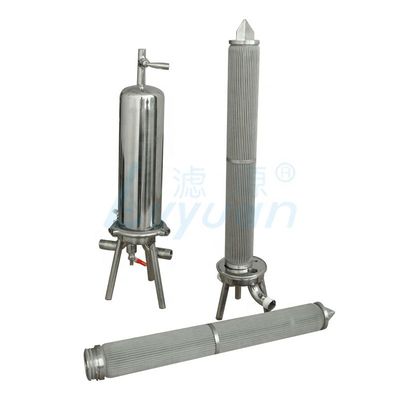

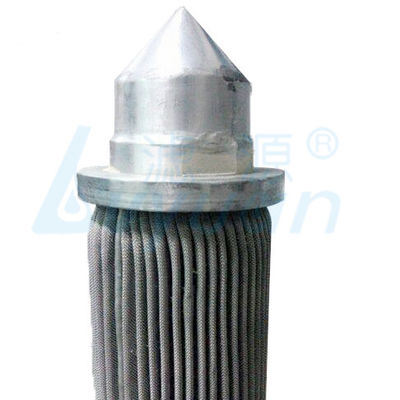

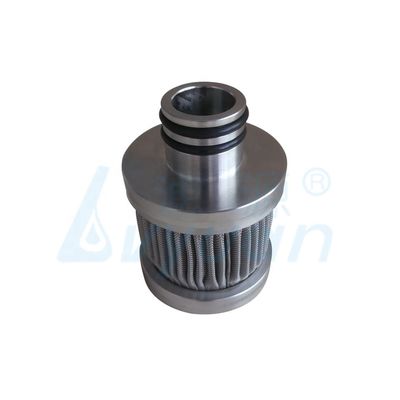

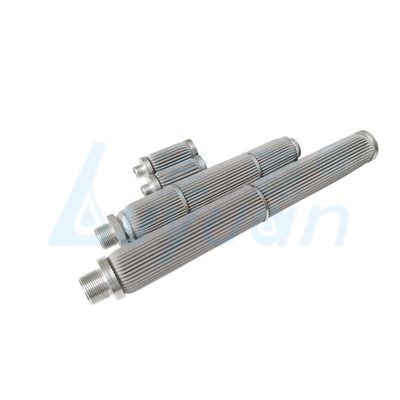

Two main filter materials for Stainless steel melt filter element: Stainless steel sintered fiber felt and Stainless steel woven wire mesh.
Stainless steel sintered fiber is a filter material made of stainless steel fibers random arranged and sintered in high temperature. The sintered web is supported with two or more layers of woven wire cloth, and pleated and finished with high-precision welding.
Polymer pleated melt filter cartridge made of sintered metal fiber has the advantages of high porosity, good air permeability, high dirt holding capacity, can be used repeatedly, etc.
The stainless steel woven wire meshes with coarse opening and fine opening are arranged in different layers, then pleated. It has the advantages of smooth pore, easy to wash, resistant to high temperature & corrosion, firm structure, long working life etc.
Melt Filter Element Applications:
1. Polyester, filament, short silk, film production polymer melts in the filtering;
2. High temperature gas, steam filtration;
3. High temperature liquid, viscous liquid filtration.
Lvyuan stainless steel filter cartridge specification:
Micron rate
|
1-200um
|
Length
|
5 to 40 inch, or customized
|
Connector type
|
222/226/215/M36/M28/M24/M22/M20 thead interface, or customized
|
Seal material
|
silicone, NBR, EPDM, FLUORO RUBBER
|
Working Temperature
|
below 500℃
|
Permeablity
|
0.02-20 L/cm2minpa
|
Working pressure
|
0.1-30 Mpa
|
Want to know more details, warmly welcomed to contact me.
1.Secondary filter for various hydraulic oils and lubricating oils of machinery industry;
2. Filtration and purification for the molten polymers of chemical fiber and film industry;
3. Filtration of high-temperature corrosive solutions of petrochemical industry;
4. Pharmacy material filtration, washing and drying.
We bulit a long term relationship with our customer and earn a good reputation from our customers. hope you to join us and cooperate with us.
1. Accept customized length, Package, logo etc, as you offer your drawing and picture.
2. Sample order, accept MOQ=10.
3. We will reply to you in 24 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the lastest process.
5. Any doublt, pl contact with us, we will help you solve the problem asap.
Our workers are efficient and our sales are professional. we will make sure your goods to delivery to your company completely asap.
Packaging:
Products are packed by high quality carton/wooden case, suitable for long distance ocean freight transportation as well as climates and with good resistance to moisture and shocks.
Delivery time:
1. If this kind of products is in stock, the product will be sent for you 1-7 days after payment.
2. If this kind of products is not in stock, the products will take about 7-25 days to produce.
