Oil Filtration 30Mpa 10 Micron titanium bars Sintered Metal Cartridge Filter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Lvyuan/OEM
Certification:	SGS/CE/ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Price:	$28.70 - $201.00 / Piece
Packaging Details:	paper box
Payment Terms:	T/T L/C West Union
Supply Ability:	500 Piece/Pieces per Day

Contact Now

Detailed Product Description

Warranty:	6 Months	After Warranty Service:	Online Support
Local Service Location:	None	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel	Usage:	Liquid Filter, Water Treatment
Type:	Filter Elements	Material:	Metal Fiber, Stainless Steel
Feature:	Good Permeablity	Diameter:	Customer'demand
Shape:	Cylinder	Application:	Industry
Color:	Sliver	Packing:	Paper Box
Other Name:	Titanium Bars Filter Cartridge	Advantage:	Reuse
High Light:	30Mpa Sintered Metal Cartridge Filter , 10 Micron Titanium Metal Cartridge Filter , sintered metal filter

Good Quality 10 micron stainless steel filter tube ss mesh filter for oil filtration

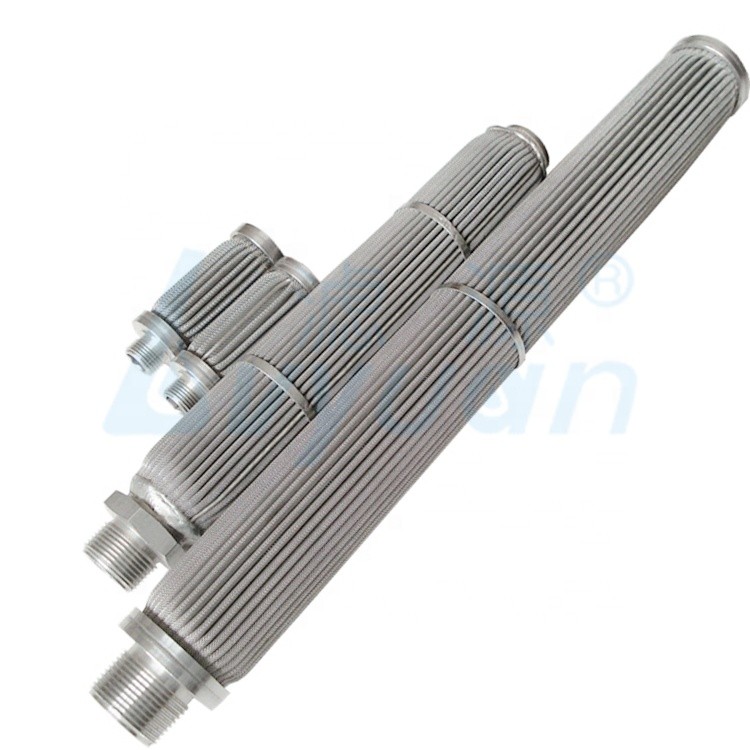

Pleated Filter Cylinder is also called metal folding filter element,corrugated filter element.Its filter media can be stainless steel woven wire mesh or sintered stainless steel fiber web.Stainless Steel Woven Wire Cloth is made of high quality stainless steel wire.Fine woven micron mesh usually works as control layer,and coarse woven mesh usually works as strengthening layer or support layer for the pleated filter elements.

Specification

Material
Stainless steel 304,304L,316,316L,904L

Technical Data

1. Working pressure:30Mpa
2. Working temperature:300 degree celcuis
3. Dirt holding capacity:16.9~41mg/cm2

Components

1) Standard connector(220,222,226)

2) Snap coupling

3) Thread connection 4) Flange connection

5) Rod connection 6) Special customization.

High dirt holding capacity and accurate filtration rating;
High reliable standard specifications;
It has low pressure drop due to high porosity;
Filtration area of pleated stainless steel filter element is increased by pleating;
It can use ultrasonic,chymistry to clean,and can be repeatedly used;can also be bounce-back cleaned without dismantling on the product line,then saving the time;
Strong corrosion,acid and alkaline resisting property.
